Create an application tunnel to your Data Center instance

An application tunnel connects your whole organization to a Data Center instance and can be used to forward application links from specific cloud apps.

はじめる前に

• Make sure you’ve prepared your Data Center instance by completing the steps described in Install application tunnels from Atlassian Marketplace and Configure required connections and upstream ports.

• In admin.atlassian.com, you can create up to 100 tunnels, each going to a different Data Center instance. However, each self-managed instance can receive only one tunnel. You can still link multiple cloud apps to this single tunnel.

• You’ll generate a security key for each tunnel. If you’d like to later regenerate it or set up automatic key rotation by using APIs, see Regenerate security key and Set up automatic key rotation.

admin.atlassian.com からトンネルを作成する

admin.atlassian.com からトンネルを作成するには、次の手順に従います。

1. 移動 Atlassian Administration. Select your organization if you have more than one.

2. Select Data management > Data sources > Application tunnels.

3. [トンネルを作成] を選択します。

4. Go through the wizard to provide the details of your Data Center instance and generate the security key associated with your tunnel.

5. Add the key to your Data Center instance. You can either choose to be redirected to your instance, or copy the key and give it to the admin of this instance so they can add it manually.

例

This is how a tunnel looks after being created in admin.atlassian.com. The status is Incomplete until you add the tunnel security key to your Data Center instance:

Add the tunnel’s security key to your Data Center instance

トンネルのセキュリティ キーを追加するには、次の手順に従います。

1. Go to application tunnels. If you were redirected here from cloud, you should already be on the right screen. If you weren’t redirected:

   1. 移動 Atlassian Administration. Select your organization if you have more than one.

   2. Select Data management > Data sources > Application tunnels.

   3. Select Add security key.

2. セキュリティ キーを貼り付けて、ウィザードのステップに従います。

Your tunnel is created. Wait until its status changes to Connected. For more info on statuses, see Available statuses for application tunnels.

例

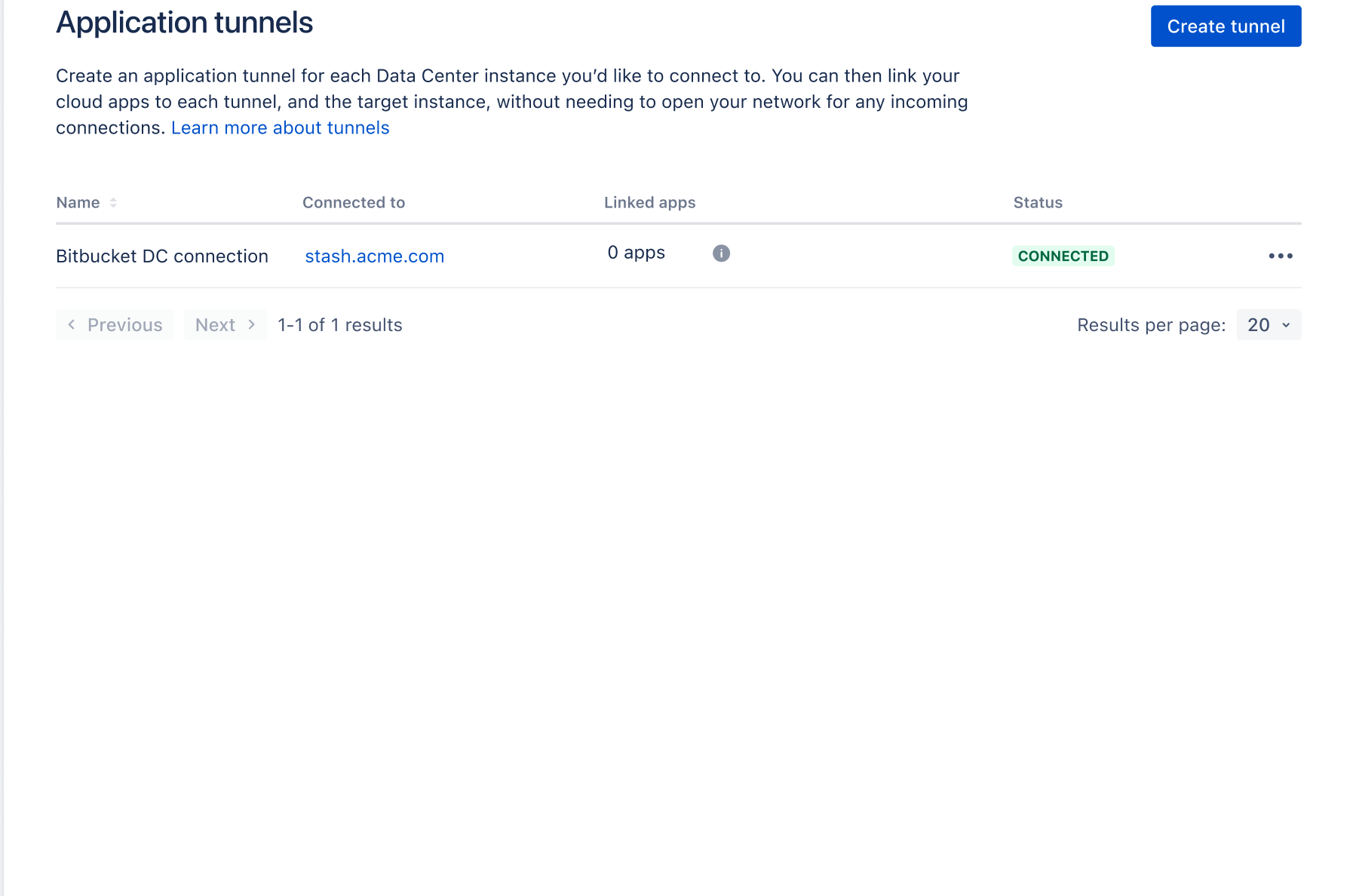

This is how a sample tunnel looks in your Data Center instance:

次のステップ

Your tunnel is ready. To make your cloud apps use it, do one of the following:

• if you created app tunnel as part of setting up cloud connector to your Data Center instance behind the firewall, return to the original page to continue the setup. Configure cloud connector

• if you created app tunnel as part of connecting cloud to Data Center with application links, proceed to create a tunneled application link
