Jira Product Discovery integration for Jira Data Center

The Jira Product Discovery integration for Jira Data Center app connects Jira Data Center work items with Jira Product Discovery ideas. This integration allows you to view work tracked in a Jira Data Center instance from a discovery space, ensuring a seamless transition to development while maintaining a clear link between discovery and delivery.

Get a Jira Product Discovery Premium plan

The Jira Product Discovery integration for Jira Data Center app is free to use with Jira Data Center. However, you need a Jira Product Discovery Premium plan to link Jira Data Center with Jira Product Discovery.

To get a Jira Product Discovery Premium plan, you can:

Start a free trial directly from the Jira Product Discovery pricing page if you’re a new customer
Add Jira Product Discovery through admin.atlassian.com if you’re already on Cloud
Upgrade to a Premium plan through admin.atlassian.com or by contacting your Atlassian account manager if you’re already a Jira Product Discovery customer

はじめる前に

You must use Jira Data Center 10.3 or newer to use the app. Jira Data Center 10.3.10 is required for the idea panel integration to work correctly.
You must be a site admin for both the Jira Data Center instance and the Jira Product Discovery site.
You must enable work item linking in your Jira Data Center.
(Optional) You need org admin access for the cloud site to set up application tunnels if your instance is behind a firewall.
If you’re using application tunnels, a single Jira Data Center instance can link to only one Jira Product Discovery site, and vice versa. This limitation doesn’t apply to application links.
Your Jira Product Discovery site must be on a Premium plan.
Users working with this integration app need access to both Jira Data Center and Jira Product Discovery sites.

Install the integration app

(Optional) Follow the steps to connect to Data Center instances with application tunnels if your instance is behind a firewall.
Install the Jira Product Discovery integration for Jira Data Center app on the Jira Data Center instance.
Follow the steps to create an application link between Jira Data Center and Jira Product Discovery. Note that if you use application tunnels, you can only set up application links from the Jira Product Discovery side.

ユーザーとして認証

Before using the Jira Product Discovery integration for Jira Data Center app, your users must perform OAuth cross-authentication between their Jira Data Center and Jira Product Discovery accounts. Explore more information about OAuth authentication.

Use the integration

Once an admin has configured the integration app, users can easily create or link existing Jira Data Center work items from Jira Product Discovery.

はじめる前に

If you’re using application tunnels, a single Jira Data Center instance can link to only one Jira Product Discovery site, and vice versa. This limitation doesn’t apply to application links.
You must have permission to view Jira Data Center work items.
You can see ideas linked to Jira Data Center work items only if your authorized Jira Product Discovery account has the necessary permissions.
You can see Jira Data Center work items linked to Jira Product Discovery ideas only if your authorized Jira Data Center account has the necessary permissions.
You can create Jira Data Center work items from Jira Product Discovery only if your authorized Jira Data Center account has the CREATE_ISSUES permission for the target space and only the following fields are set as required: Project, Issue type, Summary, and Assignee.
Delivery progress is calculated based on work items accessible to the viewing user’s authorized Jira Data Center account. Therefore, delivery progress may vary depending on the user’s Jira Data Center permissions.

Creating work items from Jira Product Discovery won’t work if there are any required fields. Check out how to specify field behavior and change your field settings.

To create a Jira Data Center work item from Jira Product Discovery:

In Jira Product Discovery, go to the target space and select the idea for which you want to create a new work item.
右側のパネルで [デリバリー] を選択します。
Select + Create work item.
From the dropdowns, select the target site, space, work type, and modify the name if needed.
(オプション) [Embed the idea description and fields into the work item (アイデアの説明とフィールドを作業項目に埋め込む)] をオンにします。
[作成] を選択します。

To link a Jira Data Center work item to a Jira Product Discovery idea:

In Jira Product Discovery, go to the target space and select the idea to which you want to link a work item.
右側のパネルで [デリバリー] を選択します。
[Link a Jira work item (Jira 作業項目をリンク)] を選択します。
ドロップダウンから、ターゲットサイト、スペース、および作業項目を選択します。
追加を選択します。

Once the work item is created or linked, you can see the Delivery progress bar and a list of linked Jira work items. You can now track the progress directly in Jira Product Discovery and see the linked ideas inside the Jira work items.

Idea panel

When the Jira Product Discovery integration for Jira Data Center app is installed and enabled, linked ideas are displayed in the idea panel within the work item view.

Ideas panel from the work item in Jira Data Center

When the app is uninstalled or disabled, linked ideas are displayed in the work item links panel as regular links.

If your Jira Data Center has a custom work item (issue) link of the type “implements”, these links will always appear in the ideas panel in Jira Product Discovery, even if they don’t correspond to ideas.

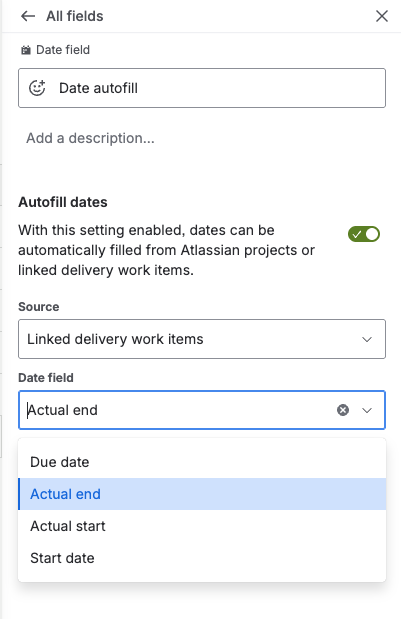

Autofill dates

You can autofill dates based on data from a linked Data Center instance. To do so, enable the Autofill dates setting.

The following fields are supported:

Jira Product Discovery field	Jira Data Center field
期限	期限
Actual start	Target start (Advanced Roadmaps for Jira)
Actual end	Target end (Advanced Roadmaps for Jira)
開始日	サポート

Data residency and security

Data shared with Jira Product Discovery

The Jira Product Discovery integration for Jira Data Center app shares data required to display application links in Jira Product Discovery and calculate the delivery progress of work items.
Explore how to configure the delivery progress field

In particular, the Jira Product Discovery integration for Jira Data Center app shares the following data with Jira Product Discovery:

Standard issue link metadata, such as app icon, status, work item key, and work item summary
Delivery progress details as shown in the following JSON snippet:

[
  {
    "id": 10003,
    "parentId": 10004,
    "key": "SCRUM-4",
    "status": "new",
    "dueDate": 1754092800000,
    "storyPoints": 1.25,
    "actualStart": 1754006400000,
    "actualEnd": 1754092800000
  },
  ...
]

Data residency for work item links

The same considerations apply as for the app links. Check out how to configure work item linking for Cloud and Data Center

Data residency for delivery progress

Delivery progress data isn’t permanently stored in Jira Product Discovery. Instead, it’s fetched on demand whenever it needs to be displayed to the user. This might have memory and performance implications for your instance. Check the Performance implications section for more information.

セキュリティ

For the Jira Product Discovery integration for Jira Data Center app to work, your users need to have both Jira Data Center and Jira Product Discovery accounts which will authorize each other through the application links platform. This has the following implications:

Jira Data Center users will only see Jira Product Discovery ideas linked to Data Center work items if their authorized Jira Product Discovery account has the permissions required to view these ideas.
Jira Product Discovery users will only see Jira Data Center work items linked to Jira Product Discovery ideas if their authorized Jira Data Center account has the permissions required to view these work items.
Jira Product Discovery users can only create Jira Data Center work items from Jira Product Discovery if their authorized Jira Data Center account has the permissions required for the target project.
Jira Product Discovery のデリバリー進捗は、閲覧しているユーザーの承認された Jira Data Center アカウントがアクセスできる作業項目のみに基づいて計算されます。そのため、デリバリー進捗の値はユーザーの Jira Data Center 権限によって異なる場合があります。

Work item link permissions

作業項目のリンク権限を持つユーザーのみが、作業項目とアイデア間のリンクを作成および削除できます。ユーザーが Jira Data Center からアイデアへのリンクを削除しても、このアクションによってアイデア自体が Jira Product Discovery から削除されることはありません。逆も同様です。作業項目へのリンクを削除しても、作業項目自体は削除されません。

パフォーマンスへの影響

We tested the Jira Product Discovery integration for Jira Data Center app with three different environment Jira Data Center configurations to determine the maximum load that a single node can handle. Our tests were designed based on metrics gathered from production Jira Product Discovery. As a result, we decided on a maximum load of 500 requests per minute, a P50 response size of 500 items, a P95 response size of 5,000 items, and a maximum response size of 60,000 items. Note that handling 60,000 items in a single response consumes around 40 MB of heap.

The expected average network traffic for different response sizes at 500 requests per minute is presented in the following table.

Items in response	受信するデータ
500	547 KB/s
5,000	5470 KB/s
60,000	65 MB/s

The following table shows the performance metrics for different environment types and response sizes. The tests were performed with the test client and the Jira Data Center node located in the same AWS region and with no other user traffic. The values shown are P99 times in milliseconds.

Response size	500 items	5,000 items	60,000 items
環境
32 GB RAM, 4 CPU, 20 GB heap	500/min: 206 ms 1000/min: 538 ms	500/s: 643 ms	100/min: 3443 ms (max reasonable) 500/min: 467141 ms
64 GB RAM, 32 CPU, 32 GB heap	500/min: 155 ms 2000/min: 271 ms	500/s: 243 ms 2000/min: 358 ms	500/min: 1196 ms 1000/min: 1401 ms
128 GB RAM, 32 CPU, 100 GB heap	500/min: 170 ms 2000/min: 384 ms	500/min: 258 ms 2000/min: 445 ms	500/min: 1110 ms 2000/min: 2002 ms

Rate limiting

Jira Data Center includes built-in rate limiting that lets admins prevent users from overloading the system with requests. Testing this integration revealed that a large Jira Product Discovery board with many linked Jira Data Center work items uses far more node resources than multiple smaller boards, increasing load nonlinearly. To address this, we added a rate-limiting layer based on the number of requested work delivery items to the app.

Implementation details

実装されたアルゴリズムは、補充の時間枠が固定された標準的なトークンベースの方法を使用しており、簡単に理解して使用できます。ただし、時間枠のサイズが固定されているため、スパイクやバーストが発生する可能性があります。

さらに、このソリューションはクラスター化されていません。代わりに、各 Jira Data Center ノードが別個の環境で動作します。(読み取り専用ノードのように) スティッキーセッションとカスタムルールを組み合わせると、クラスターノードごとに負荷の特性を変えることができます。この設計により、管理者はノード単位の設定を適用できます。

The token system reflects the number of work items requested by the Jira Product Discovery board. For example, a board with 10 Jira Data Center work items consumes 10 tokens.

Configure and enable rate limiting

Rate limiting is disabled by default. You can enable it by passing the -Djpdc.feature.rate.limiting.enabled=true Java environment variable.

By default, the window time is set to 1 minute and the number of tokens is set to 12 million (2,000 requests times 60,000 items - see table above). To change these values, edit the following properties:

// Below property changes fixed window size to 1 min.
// Hence bucket will be refilled every 1 minute for its max capacity.
-Dcom.atlassian.jpdc.connector.rate.limiting.window.time.in.milliseconds=60000

// Below property changes bucket size to 10 tokens. Hence all users can only
// request 10 work items metadata per window.
-Dcom.atlassian.jpdc.connector.rate.limiting.bucket.capacity=10

負荷分散

If you plan to distribute the Jira Product Discovery load across multiple Jira Data Center nodes, note that some nodes may reach capacity faster than others. Adjust your load balancing rules and sticky sessions to redirect calls to other nodes as needed.

監視

Rate limiting characteristics are included with Jira Stats and the Open Telemetry endpoint. Examples you can find it below.
To debug rate limit change DEBUG log level for the following packet: com.atlassian.jpdc.connector.

監視

監査ログ

To enable audit logs for this app, you must set the coverage level to Full for external apps.

Audit logs are stored under:

Category: JPD Connector
Summary: Delivery Issue Details Request

The following image displays an audit log example.

アプリログ

By default, the app uses theINFO log level. You can change this in the Jira Data Center logging configuration for the following packet: com.atlassian.jpdc.connector.

Each log line starts with the app’s prefix for easy filtering: [JPDConnector].

リクエストとレスポンスの issueIds を記録するには、ログレベルを TRACE に設定します。

This app supports JIRA-STATS logs (both total and snapshot). The com.atlassian.jpdc.stats.logging.interval.minutesvariable defines the stat logging interval in minutes, with a default value of 30. If not defined, com.atlassian.jira.stats.logging.interval is the fallback.

JIRA-STATS ログの形式は次のとおりです。

[JIRA-STATS] [JPDConnector] snapshot stats: {"searchMillis":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"searchMillisDistribution":{"100":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"500":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"1000":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"10000":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"60000":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"9223372036854775807":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}}},"mapErrorsMillis":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"requestedIssueCount":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{"10":0,"100":0,"1000":0}},"foundIssueCount":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{"100":0,"500":0,"1000":0,"10000":0,"60000":0}},"childIssueCount":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{"100":0,"500":0,"1000":0,"10000":0,"60000":0}},"errorIssueCount":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{"10":0,"100":0,"1000":0}},"usedMemoryMb":{"count":1,"min":933,"max":933,"sum":933,"avg":933,"distributionCounter":{}}, "rateLimitCount":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{}},"rateLimitUsedCapacity":{"count":0,"min":0,"max":0,"sum":0,"avg":0,"distributionCounter":{"10":0,"20":0,"30":0,"40":0,"50":0,"60":0,"70":0,"80":0,"90":0,"100":0}}}

メトリック	説明
`searchMillis`	検索操作の計算時間 (ミリ秒単位)。
`searchMillisDistribution`	レスポンスサイズ別の検索時間の分布。
`mapErrorsMillis`	Calculated time of mapping all errors for issues.
`requestedIssuesCount`	リクエストで使用された課題 ID の数。
`foundIssuesCount`	Count of issues found in search.
`childIssuesCount`	Count of child issues found in search.
`errorIssuesCount`	検索で見つかったエラーのある課題の数。
`usedMemoryMb`	JVM メモリの使用量 (メガバイト単位)。
`rateLimitCount`	Count of how many times the delivery progress endpoint was rate-limited
`rateLimitUsedCapacity`	Distribution of bucket capacity usage in %

Additionally, these metrics are distributed into buckets by count:

By issue count in the request
- 対象: requestedIssuesCount
- buckets: 10, 100, 1000, >1000
レスポンス内のデリバリーチケット数
- 対象: searchMillisDistribution、foundIssuesCount、childIssuesCount
- buckets: 100, 500, 1000, 10000, 60000, >60000
By error delivery ticket count in the response
- 対象: errorIssuesCount
- buckets: 10, 100, 1000, >1000
By percentage
- for rateLimitUsedCapacity
- buckets: 10, 20, 30, 40, 50, 60, 70, 80, 90, 100

OpenTelemetry REST endpoint

Metrics in the OpenMetrics text format are available via the /rest/jpdc/1.0/metrics endpoint if the com.atlassian.jpdc.feature.openmetrics.enabled flag is enabled. Authorization is required to access this resource.

The OpenTelemetry data consists of JVM metrics, request and response counters and histograms, and delivery issue details. The data is assigned to buckets for easier visualization. See each metric’s "le" (lower-equal) value for bucketing details.

# TYPE jvm_threads_current gauge
# HELP jvm_threads_current Current thread count of a JVM
jvm_threads_current 231.0
# TYPE jpdc_found_issues_count histogram
# HELP jpdc_found_issues_count Count of issues found for delivery issue details
jpdc_found_issues_count_bucket{le="100.0"} 1.0
jpdc_found_issues_count_bucket{le="500.0"} 2.0
jpdc_found_issues_count_bucket{le="1000.0"} 2.0
jpdc_found_issues_count_bucket{le="10000.0"} 2.0
jpdc_found_issues_count_bucket{le="60000.0"} 2.0
jpdc_found_issues_count_bucket{le="+Inf"} 2.0
jpdc_found_issues_count_count 2.0
jpdc_found_issues_count_sum 529.0
jpdc_found_issues_count_created 1.757496936605E9
# TYPE jpoc_rate_limiting_count counter
# HELP jpdc_rate_limiting_count Count of requests that was rate limited for delivery issue details
jpdc_rate_limiting_count_total{bucket_size="10"} 7.0
jpdc_rate_limiting_count_created{bucket_size="10"}
# TYPE jpdc_rate_limiting_near_limit_count counter
# HELP jpdc_rate_limiting_near_limit_count Count of requests that was near limit of bucket
jpdc_rate_limiting_near_limit_count_total{is_near_limit="true",near_limit_threshold="8"} 11.0
jpdc_rate_limiting_near_limit_count_created{is_near_limit="true",near_limit_threshold="8"} 1.760084409218E9
jpdc_rate_limiting_near_limit_count_totalfis_near_limit="false",near_limit_threshold="8"} 16.0
jpdc_rate_limiting_near_limit_count_created{is_near_limit="false",near_limit_threshold="8"} 1.760084404258E9

トラブルシューティング

Application tunnel isn't available or connected

If the app tunnel is unavailable, make sure that Jira Data Center has a properly set-up connector, installed tunnels plugin, and that an app tunnel is created from Jira Product Discovery to Jira Data Center.

Inconsistency between Jira Product Discovery and Jira Data Center

Make sure you don’t see any error codes in responses from the Jira Data Center API. Also ensure the user reporting the problem has permission for all tickets in Jira Data Center and that the app link from Jira Product Discovery to Jira Data Center is working fine.

エラーコード	メッセージ	説明
`1`	`Unexpected error during issue details retrieval.`	Not used.
`2`	`Issue does not exist or user lacks permissions to view it.`	Returned when work item search for a given user and work item ID yields no results. This could be caused either by lack of permissions or the work item not existing.

Work item deletion in Jira Data Center not reflected in Jira Product Discovery

If the user has completed the cross-authorization of their Jira Product Discovery and Jira Data Center accounts, deleting work items won’t cause an issue, since all changes will be reflected both in Jira Product Discovery and Jira Data Center.

If the user hasn’t done so, or if they don’t have the required permissions, they will see a placeholder prompting them to peform cross-authorization.

Link between Jira Product Discovery idea and Jira Data Center work item deleted

Once a link is deleted, you can only recreate it from the Jira Product Discovery side.

If the link was deleted from the Jira Product Discovery side, the Jira Data Center work item will no longer count towards delivery progress.

If the link was deleted from the Jira Data Center side, the Jira Data Center work item will continue to count towards delivery progress.

Idea panel in Jira Data Center shows more work items than the Jira Product Discovery board

The idea panel only shows Jira Product Discovery ideas that have an "implements" relationship with Jira Data Center work items or that were linked to from the delivery panel. This means that you might see more work items in Jira Data Center than in Jira Product Discovery. Only work items shown in Jira Product Discovery count toward delivery progress.

Can't create issue from Jira Product discovery

Make sure your users have permission to create work items. In addition, make sure that it’s possible to create an issue using the default values and that there aren’t any additional restrictions.

Dangling work item links

The Jira Product Discovery integration for Jira Data Center app inherits native work item link behavior. If a Jira Product Discovery idea is removed, you may encounter dangling Jira Data Center work item links that weren’t removed automatically. You can safely remove them yourself.

Jira Data Center work items created from Jira Product Discovery contain strange characters

By design, the integration support plain text only. This is because Jira Product Discovery and Jira Data Center use different sets of Markdown for text formatting. To avoid this issue, create Jira Data Center work items from Jira Product Discovery using plain text only.

Other known issues

Issue	説明
Remote links aren't supported when cloning or splitting issues.	We're working to fix this in future releases.
The Linked items field doesn’t reflect the number of remotely linked items.	We're working to fix this in future releases.
When linking local work items, it's possible to link the same item multiple times with a different relation type (blocks, relates, etc). Remote issues, may only be linked once.	Working as intended.
When unlinking an issue, it disappears only on the site where the operation was performed.	Working as intended.
The following project dropdown behaviors: For Cloud remote sites - all projects containing the given string will be returned For DC remote sites - only projects that start with the given string will be returned	Working as intended.
Deleting an idea in Jira Product Discovery isn’t reflected in the Jira Data Center ideas panel.	Working as intended.
In Jira Product Discovery, the items displayed as "children" for Jira Data Center issues are based on the "parent link" relationship, not the standard "parent" relationship. For epics, this means we show "issues in epic" rather than "subtasks".	Working as intended.
