Missing SLAs in Jira Service Management

Summary

In Jira Service Management, you may encounter instances where the SLA for an issue is either missing or fails to update (start/stop) when expected. While this Knowledge Base does not offer a definitive solution due to potential variations in root causes such as apps, database corruption, or other unknown factors, it does present a viable workaround for addressing the issue of missing SLAs.

Environment

Jira Service Management version 3.0.3 or above.

Diagnosis

• An example case is the missing 'Initial Reaction Time' SLA in the issue:

• SLA is not showing on both ticket and issue navigator searches.

• There are SLA entries in the database for the affected issues but the SLA is either missing or incorrectly displayed on the UI e.g. still running when they should already be stopped.

  • Refer to this documentation to verify from the database the SLA data is indeed missing.

Cause

There can be multiple causes, such as:

• Corrupted database.

• Plugin problems.

• Errors when calculating the SLA update.

• Bugs such as JSDSERVER-16647.

Solution

Resolution

For the following root causes:

• Corrupted database: The above workaround is expected to resolve the issue of missing data.

• Plugin Issue: Enable Safe Mode on the test instance to see if the SLA is still missing.

For any other unidentified root causes, please reach out to Atlassian Support for further investigation.

Workaround

As detailed in the Jira Service Management 5.0.x release notes, you can recalculate SLAs from the UI for JSM version >= 5.0.x. We recommend trying this method before resorting to REST calls if the problem is for a few specific issues or you want to see if recalculation helps.

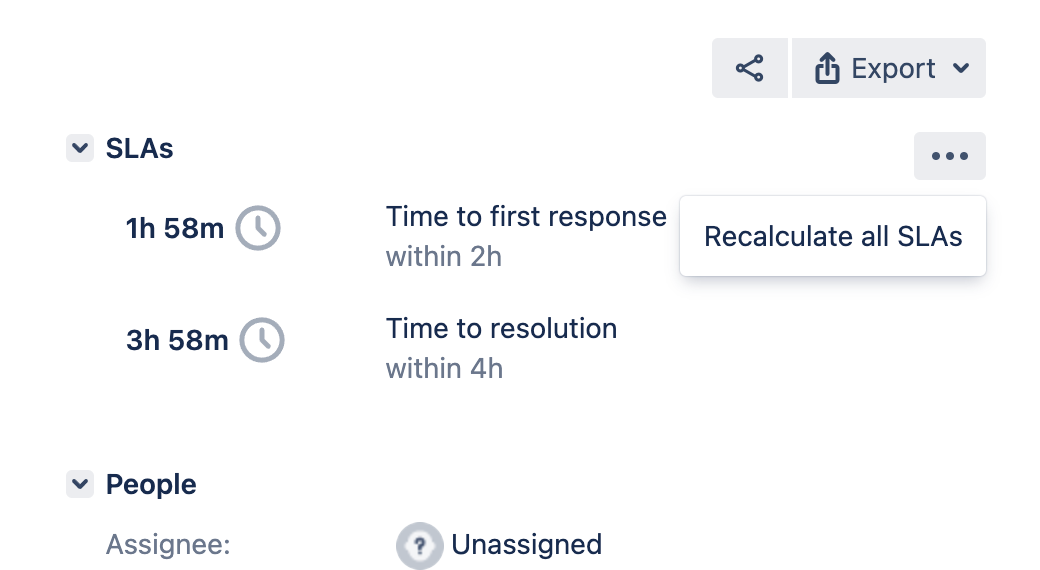

To recalculate SLAs for one issue using the UI

1. Navigate to the issue.

2. In the SLAs section, select More actions (…) > Recalculate all SLAs.

3. Select Recalculate.

To recalculate SLAs for a list of issues using the REST API

• If you are running JSD 4.3.0 and above, you will need to first enable the dark feature sd.sla.fix.timeline.enabled per the instructions in Enable Dark Feature in Jira:

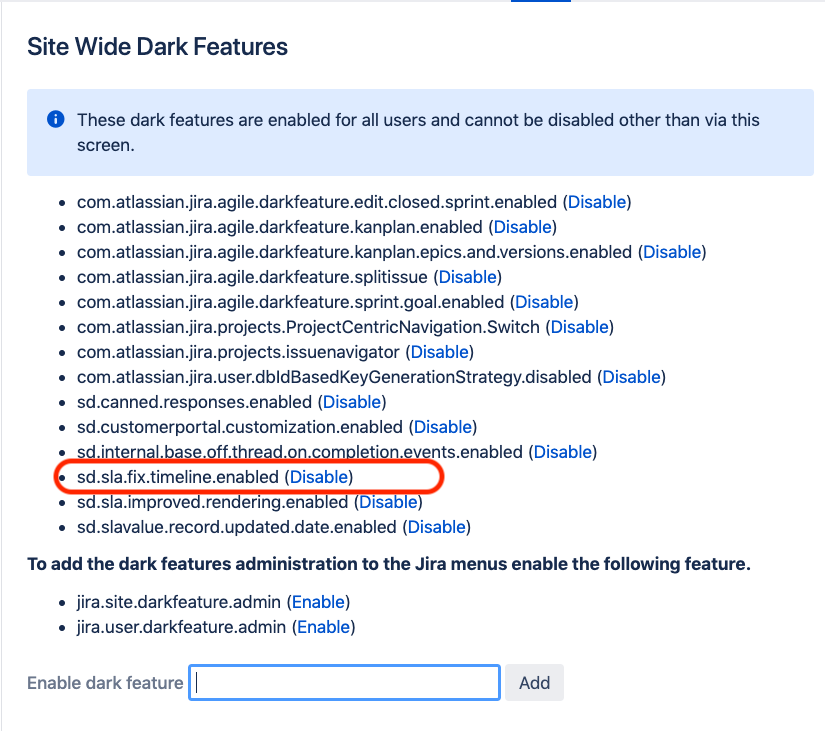

  • Navigate to the following page to access the Dark Features page:

    <baseUrl>/secure/admin/SiteDarkFeatures!Default.jspa

  • Enter sd.sla.fix.timeline.enabled in the field “Enable dark feature” and clicking on the “Add” button, and verify that the dark feature sd.sla.fix.timeline.enabled is showing:

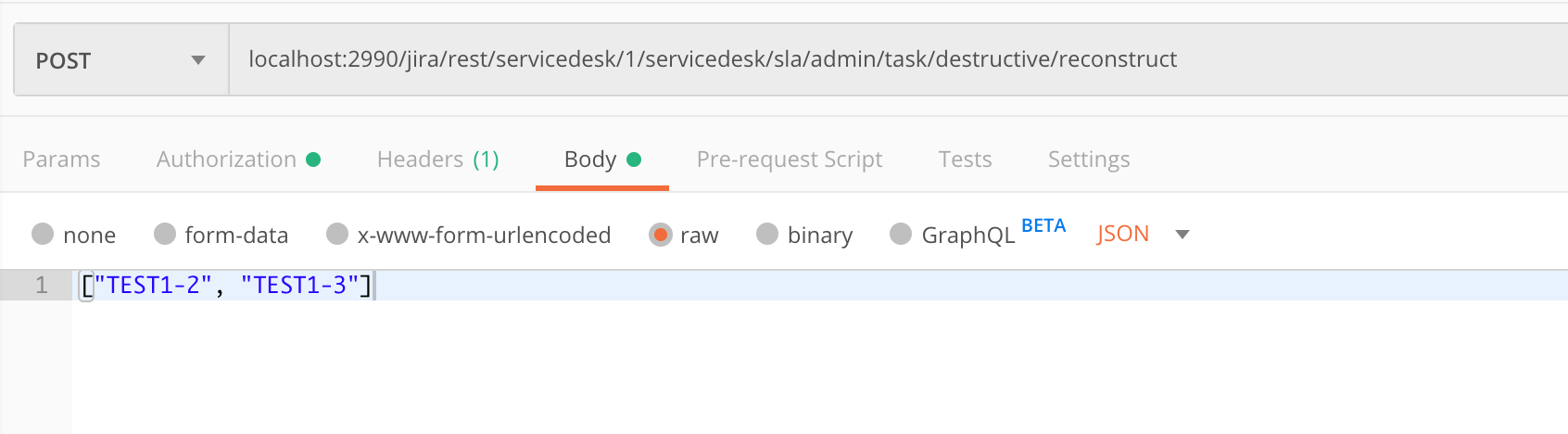

• Perform a POST-REST call to the Jira instance through the following URL:

  <baseUrl>/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct

• In the Authorization tab, select 'Basic Auth' type and supply your Jira credentials accordingly.

• Along with the header: "Content-Type: application/json" and raw JSON data below within the Body section.

  ["ISSUEKEY-XXX", "ISSUEKEY-XXXX"]

• Key in the issue key for the issue which has the missing SLA.


  You may install Postman offered by Chrome Web Store to achieve this. Please make sure you're sending a POST request with rawdata with JSON application.

  Alternatively, you can use the CURL command-line tool to do this:

  $ curl -X POST -u $USERNAME:$PASSWORD -H "Content-Type: application/json" "http://localhost:2990/jira/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct" -d "[\"TEST1-2\", \"TEST1-3\"]"

• Performing the above REST API call will trigger a manual reconstruction of the SLA.

• Navigate to the Service Management Project Administration and click on the "Update" icon under the SLAs section.

To recalculate SLAs for JQL using the REST API (JSM 4.9.1+)

• /rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/jql

  • Similar to /rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct but it takes a valid JQL expression instead of the list of issues to get the issues to be reconstructed.

    Not providing any JQL will cause an empty JQL to be executed which will return all issues on the instance , and will run reconstruction on all of them, with the risk of causing a performance issue. Use with caution.

    $ curl -X POST -u $USERNAME:$PASSWORD -H "Content-Type: application/json" "http://localhost:2990/jira/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/jql" -d "Project=TST"

• /rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/force

  • Similar to <baseUrl>/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct, but it will not take into account whether any events are missing or out of order. It will recalculate the SLA based on current SLA settings (which might have changed since the time the issue SLAs were calculated) and force overwrite the values in the DB for each issue provided to the API in the request body.

  • ⚠️ Be EXTREMELY careful when running this one. The changes are irreversible, and the new calculated values will take into account only the current SLA settings that may not be the same as when the SLAs were originally calculated for the ticket.

• /rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/jql/force

  • Similar to <baseUrl>/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/jql, but it will not take into account whether any events are missing or out of order. It will recalculate the SLA based on current SLA settings (which might have changed since the time the issue SLAs were calculated) and force overwrite the values in the DB for each issue returned by the provided JQL.

  • ⚠️ Be EXTREMELY careful when running this one. The changes are irreversible, and the new calculated values will take into account only the current SLA settings that may not be the same as when the SLAs were originally calculated for the ticket.

  • ⚠️ Not providing any JQL will cause an empty JQL to be executed which will return all issues on the instance, and will run reconstruction on all of them. Use with EXTREME caution.

Recalculating SLAs using a script (versions below 4.9.1)

This script was build to help running the /rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct endpoint using a JQL on versions earlier than 4.9.1.

• Service Desk SLA Regen.py

  ''' Script for regenerating SLAs in JSD. Set search_jql and run! ''' import requests import json import getpass import sys # Username and password terminal input username = input('Jira Username: ') password = getpass.getpass() search_url = 'https://<base-url>/rest/api/2/search' sla_url = 'https://<base-url>/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct?force=false' search_jql = '' data = {"jql": search_jql, "fields": ["key"], "startAt": 0, "maxResults": 1000} # python dictionary to json data = json.dumps(data) # Session Start s = requests.Session() # Initial Search request r = s.post( url= search_url, data=data, auth=(username, password), headers={'Content-Type': 'application/json'} ) status_code = r.status_code if status_code == 401: sys.exit("Invalid credentials provided, please check username/password") total = r.json()["total"] print("Total is " + str(total)) startValue = 0 all_issues = [] while startValue < total: data = {"jql": search_jql, "fields": ["key"], "startAt": startValue, "maxResults": 1000} data = json.dumps(data) print("Starting search at startvalue=" + str(startValue)) r = s.post( url=search_url, data=data, headers={'Content-Type': 'application/json'} ) for issues in r.json().get("issues"): all_issues.append(issues["key"]) startValue += 1000 for issue in all_issues: data = [issue] data = json.dumps(data) print("Updating " + issue) r = s.post( url=sla_url, data=data, headers={'Content-Type': 'application/json'} )

  • Python3 and requests module are needed to run it.

Using the Automation for Jira to schedule automatic reconstruction:

1. Create a Global Automation Rule.

2. Select a "Scheduled event" trigger for every 1h or another period that best fits your case.

3. Mark the "simply run" checkbox option on the scheduled trigger.

4. For the action, select the: "Send web request" block:

   {{baseURL}}/rest/servicedesk/1/servicedesk/sla/admin/task/destructive/reconstruct/jql

   Note: You'll still need to enable the dark feature before applying this workaround.

   Header for the Auth credentials:

   Authorization = Bearer <personal-token>

   Note: We recommend using secret keys in Automation for Jira to avoid exposing your key to other automation users.

   Header for the json content (JQL)

   Content-Type > application/json

   Example JQL to get the latest missing SLAs

   "SLA-NAME" = outdated() AND created > -2h

   Note: To avoid unnecessary recalculation be sure to use a JQL that gets only the affected issues as every time this rule run, Jira will recalculate all the SLAs even if they aren't missing or broken.

5. Create a new name, save and publish the new rule.

6. You can click the button "Run rule" button to run the rule and check the Audit log to make sure it works.
