Jira server issue not showing expected transitions

Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.

Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.

*Except Fisheye and Crucible

Summary

Problem

Symptom 1:

There are no transitions available in an issue, however there are other transitions in the workflow. Other issues from the same project can be transitioned.

Symptom 2:

There are no conditions in the workflow transition, the workflow is configured correctly, the user has the "Transition Issues" permission, reindexing the system and performing the integrity checker still does not cause the transition to show up.

Symptom 3:

A system workflow screen is missing from Jira. Depending on issue or projects, some issues will not show expected workflow transitions.

Solution

For Symptom 1:

The workflow entry of the issue has an incorrect state.

For Symptom 2:

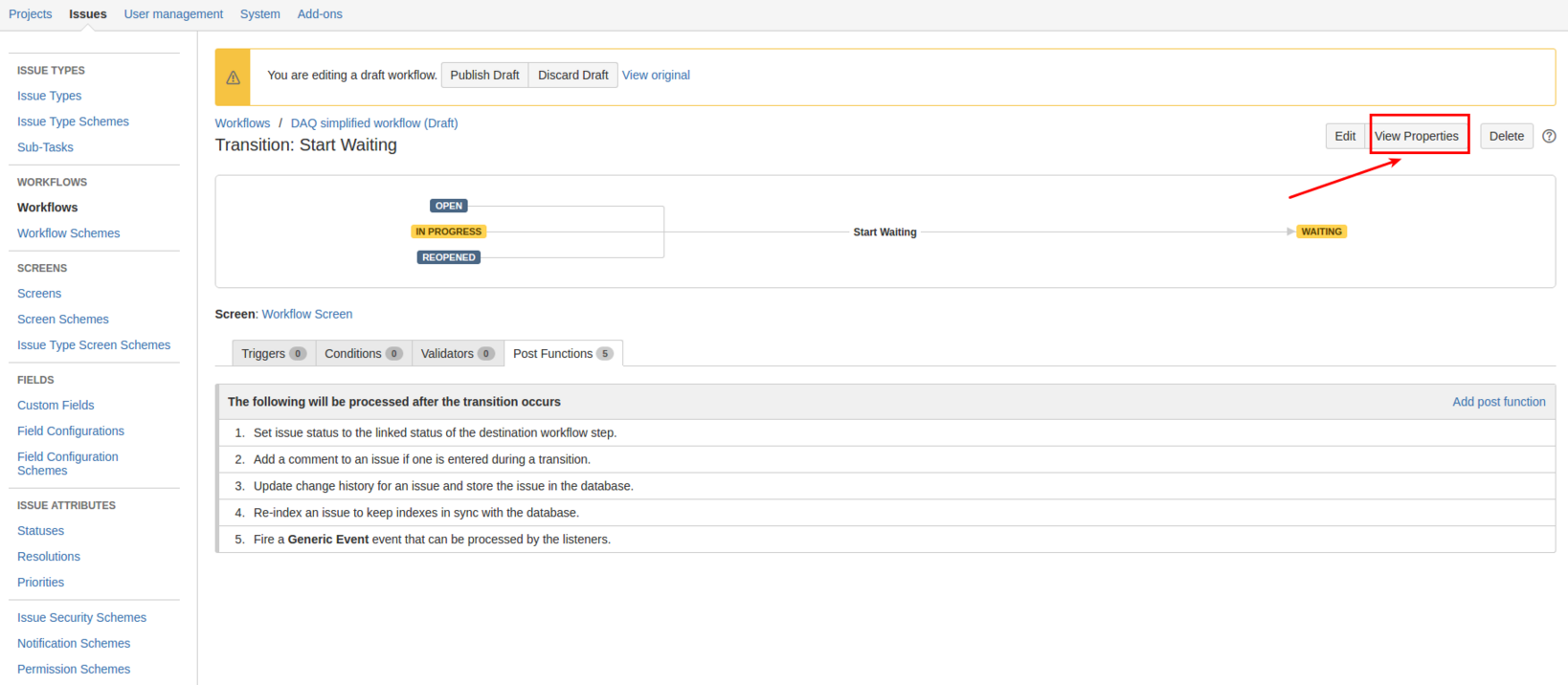

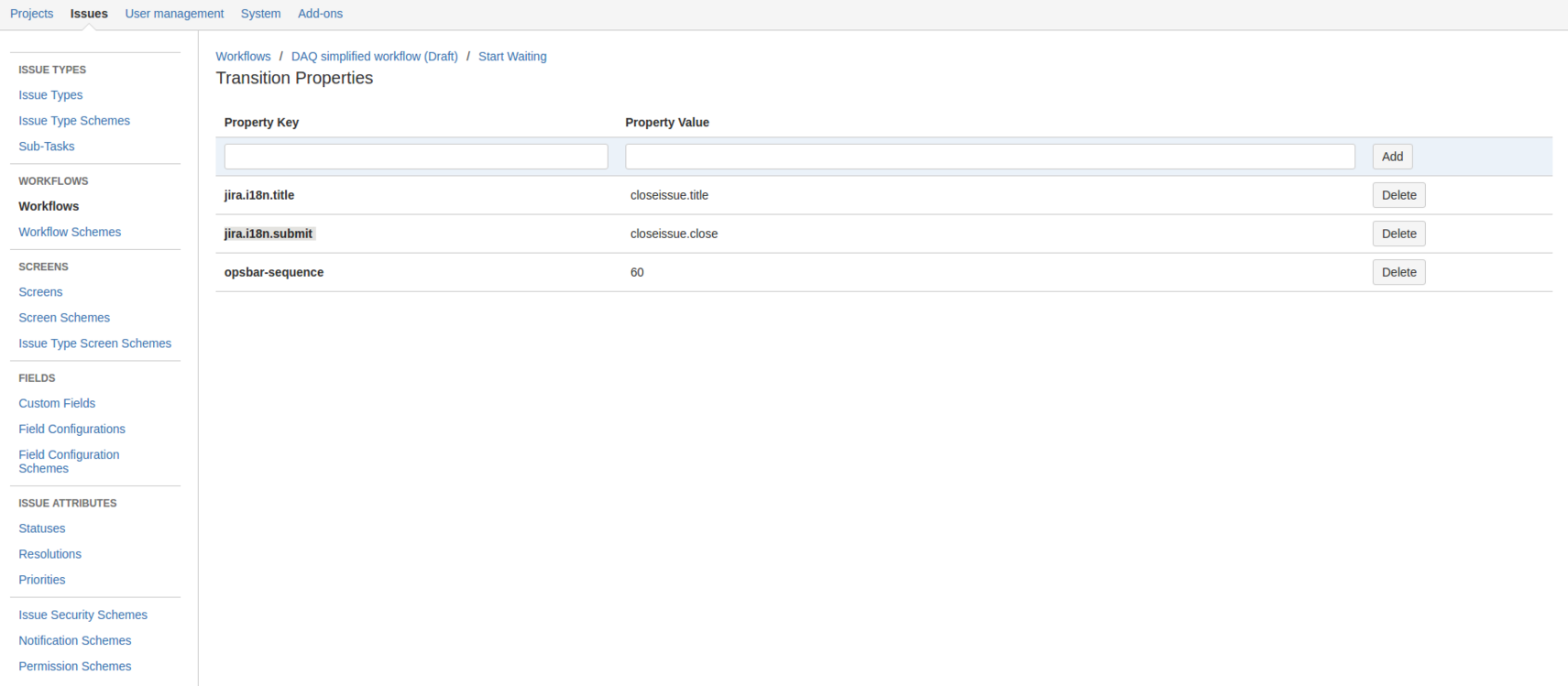

There are workflow properties that exists in the Transition Properties. (Navigate to the missing transition's settings and click on View Properties in the UI)

(Auto-migrated image: description temporarily unavailable)

(Auto-migrated image: description temporarily unavailable)

For Symptom 3:

The following error is visible in the logs, when user is trying to transition the issue:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 2024-04-16 12:08:23,194+0200 http-nio-8092-exec-984 url: /rest/api/2/issue/2320713/transitions; user: admin ERROR admin 728x6705294x20 1tlqiv5 192.168.1.10,192.168.1.9 /rest/api/2/issue/2320713/transitions [c.a.j.rest.exception.ExceptionInterceptor] Returning internal server error in response java.lang.reflect.InvocationTargetException at jdk.internal.reflect.GeneratedMethodAccessor4758.invoke(Unknown Source) at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source) at java.base/java.lang.reflect.Method.invoke(Unknown Source) at com.atlassian.plugins.rest.common.interceptor.impl.DispatchProviderHelper$ResponseOutInvoker.lambda$_dispatch$0(DispatchProviderHelper.java:181) at com.atlassian.plugins.rest.common.interceptor.impl.DispatchProviderHelper.lambda$invokeMethodWithInterceptors$0(DispatchProviderHelper.java:81) ... 3 filtered at com.atlassian.jira.rest.exception.ExceptionInterceptor.intercept(ExceptionInterceptor.java:55) ... 1 filtered at com.atlassian.jira.rest.v2.issue.scope.RequestScopeInterceptor.intercept(RequestScopeInterceptor.java:39) ... 15 filtered at com.atlassian.plugins.rest.module.RestDelegatingServletFilter$JerseyOsgiServletContainer.doFilter(RestDelegatingServletFilter.java:171) ... 1 filtered at com.atlassian.plugins.rest.module.RestDelegatingServletFilter.doFilter(RestDelegatingServletFilter.java:75) ... 32 filtered ... Caused by: java.lang.IllegalArgumentException: Cannot find Screen with id '2'. at com.atlassian.jira.workflow.WorkflowActionsBean.getFieldScreenForView(WorkflowActionsBean.java:57) ...

Workaround

For Cause 1:

Run the Integrity Checker (type "g"+"g" and search for integrity checker) in your JIRA to fix any broken relationships in your workflow.

Alternatively you may follow the steps from this page to manually find and fix workflow-related data issues directly in the database:

For Cause 2:

Delete the workflow properties and the transition should be appearing.

For Cause 3:

Follow the "Solution" section from the following article: Screens are not showing Workflow Association and can not delete unused screens in Jira

If this article does not addresses your problem, please raise a new case with Atlassian Support.
