Jira and LDAP channel binding & LDAP signing requirement for Windows
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Problem
Microsoft has released a security advisory for LDAP channel binding and LDAP signing to be implemented as a way to increase security of the network communication between an Active Directory Domain Services (AD DS) or an Active Directory Lightweight Directory Services (AD LDS) and its clients. Please refer to the below article from Microsoft for complete details.
How to enable LDAP signing in Windows Server 2008
If your Jira instance is configured with User Directories, which are not communicating over SSL (using LDAPS), communication with these directories will fail
.
Directory synchronisation will fail with error “org.springframework.ldap.AuthenticationNotSupportedException: [LDAP: error code 8 - 00002028: LdapErr: DSID-0C090256, comment: The server requires binds to turn on integrity checking if SSL\TLS are not already active on the connection, data 0, v3839“
and the below logged in the atlassian-jira.log.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
2020-01-31 16:58:02,699 Caesium-1-1 INFO ServiceRunner [c.a.crowd.directory.DbCachingRemoteDirectory] failed synchronisation complete for directory [ 10104 ] in [ 3ms ]
2020-01-31 16:58:02,720 Caesium-1-1 ERROR ServiceRunner [c.atlassian.scheduler.JobRunnerResponse] Unable to synchronise directory
com.atlassian.crowd.exception.OperationFailedException: Error looking up attributes for highestCommittedUSN
at com.atlassian.crowd.directory.MicrosoftActiveDirectory.fetchHighestCommittedUSN(MicrosoftActiveDirectory.java:703)
at com.atlassian.crowd.directory.ldap.cache.UsnChangedCacheRefresher.synchroniseAll(UsnChangedCacheRefresher.java:148)
at com.atlassian.crowd.directory.DbCachingRemoteDirectory.synchroniseCache(DbCachingRemoteDirectory.java:978)
at com.atlassian.crowd.manager.directory.DirectorySynchroniserImpl.synchronise(DirectorySynchroniserImpl.java:67)
at com.atlassian.jira.crowd.embedded.JiraDirectorySynchroniser.synchronizeDirectory(JiraDirectorySynchroniser.java:77)
at com.atlassian.jira.crowd.embedded.JiraDirectorySynchroniser.runJob(JiraDirectorySynchroniser.java:52)
at com.atlassian.scheduler.core.JobLauncher.runJob(JobLauncher.java:134)
at com.atlassian.scheduler.core.JobLauncher.launchAndBuildResponse(JobLauncher.java:106)
at com.atlassian.scheduler.core.JobLauncher.launch(JobLauncher.java:90)
at com.atlassian.scheduler.caesium.impl.CaesiumSchedulerService.launchJob(CaesiumSchedulerService.java:435)
at com.atlassian.scheduler.caesium.impl.CaesiumSchedulerService.executeClusteredJob(CaesiumSchedulerService.java:430)
at com.atlassian.scheduler.caesium.impl.CaesiumSchedulerService.executeClusteredJobWithRecoveryGuard(CaesiumSchedulerService.java:454)
at com.atlassian.scheduler.caesium.impl.CaesiumSchedulerService.executeQueuedJob(CaesiumSchedulerService.java:382)
at com.atlassian.scheduler.caesium.impl.SchedulerQueueWorker.executeJob(SchedulerQueueWorker.java:66)
at com.atlassian.scheduler.caesium.impl.SchedulerQueueWorker.executeNextJob(SchedulerQueueWorker.java:60)
at com.atlassian.scheduler.caesium.impl.SchedulerQueueWorker.run(SchedulerQueueWorker.java:35)
at java.lang.Thread.run(Thread.java:748)

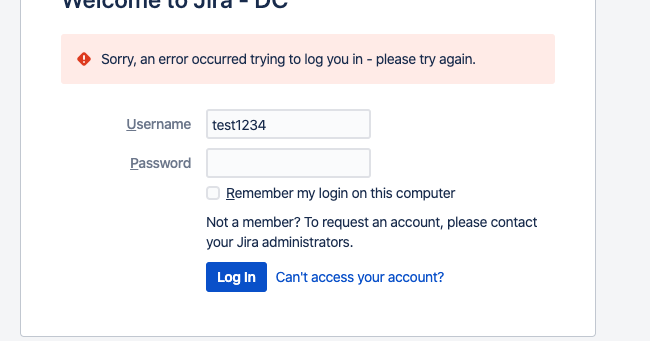

Caused by: org.springframework.ldap.AuthenticationNotSupportedException: [LDAP: error code 8 - 00002028: LdapErr: DSID-0C090256, comment: The server requires binds to turn on integrity checking if SSL\TLS are not already active on the connection, data 0, v3839The user would get the below error.
Additionally, the below error will be logged in atlassian-jira.log.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2020-01-31 15:52:18,975 http-nio-8851-exec-13 ERROR anonymous 952x662x1 sy1j5u 0:0:0:0:0:0:0:1 /login.jsp [c.a.c.manager.application.ApplicationServiceGeneric] Directory 'Active Directory server' is not functional during authentication of 'test1234'. Skipped.
2020-01-31 15:52:18,975 http-nio-8851-exec-13 ERROR anonymous 952x662x1 sy1j5u 0:0:0:0:0:0:0:1 /login.jsp [c.a.j.security.login.JiraSeraphAuthenticator] Error occurred while trying to authenticate user 'test1234'.
com.atlassian.crowd.exception.runtime.OperationFailedException
at com.atlassian.crowd.embedded.core.CrowdServiceImpl.convertOperationFailedException(CrowdServiceImpl.java:676)
at com.atlassian.crowd.embedded.core.CrowdServiceImpl.authenticate(CrowdServiceImpl.java:76)
at com.atlassian.jira.security.login.JiraSeraphAuthenticator.crowdServiceAuthenticate(JiraSeraphAuthenticator.java:75)
at com.atlassian.jira.security.login.JiraSeraphAuthenticator.authenticate(JiraSeraphAuthenticator.java:49)
at com.atlassian.seraph.auth.DefaultAuthenticator.login(DefaultAuthenticator.java:90)
... 36 filtered
at com.atlassian.jira.servermetrics.CorrelationIdPopulatorFilter.doFilter(CorrelationIdPopulatorFilter.java:30)
... 5 filtered
at com.atlassian.servicedesk.internal.web.CustomerContextSettingFilter.lambda$invokeFilterChain$0(CustomerContextSettingFilter.java:213)
at com.atlassian.servicedesk.internal.api.util.context.ReentrantThreadLocalBasedCodeContext.rteInvoke(ReentrantThreadLocalBasedCodeContext.java:136)
at com.atlassian.servicedesk.internal.api.util.context.ReentrantThreadLocalBasedCodeContext.runOutOfContext(ReentrantThreadLocalBasedCodeContext.java:89)
at com.atlassian.servicedesk.internal.utils.context.CustomerContextServiceImpl.runOutOfCustomerContext(CustomerContextServiceImpl.java:47)
at com.atlassian.servicedesk.internal.web.CustomerContextSettingFilter.outOfCustomerContext(CustomerContextSettingFilter.java:204)
at com.atlassian.servicedesk.internal.web.CustomerContextSettingFilter.doFilterImpl(CustomerContextSettingFilter.java:135)
at com.atlassian.servicedesk.internal.web.CustomerContextSettingFilter.doFilter(CustomerContextSettingFilter.java:124)
... 4 filtered
at com.atlassian.jwt.internal.servlet.JwtAuthFilter.doFilter(JwtAuthFilter.java:37)
... 8 filtered
at com.atlassian.web.servlet.plugin.request.RedirectInterceptingFilter.doFilter(RedirectInterceptingFilter.java:21)
... 4 filtered
at com.atlassian.web.servlet.plugin.LocationCleanerFilter.doFilter(LocationCleanerFilter.java:36)
... 26 filtered
at com.atlassian.jira.servermetrics.MetricsCollectorFilter.doFilter(MetricsCollectorFilter.java:25)
... 25 filtered
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
Caused by: org.springframework.transaction.CannotCreateTransactionException: Could not create DirContext instance for transaction; nested exception is org.springframework.ldap.AuthenticationNotSupportedException: [LDAP: error code 8 - 00002028: LdapErr: DSID-0C090256, comment: The server requires binds to turn on integrity checking if SSL\TLS are not already active on the connection, data 0, v3839Cause
As the LDAP server is now configured to require signed communication, simple bind request are rejected by the LDAP server.
Resolution
Locked out of JIRA
If you have no Jira administrator accounts that can login because of this, then please follow this guide: Retrieving the JIRA Administrator
Configure User directories to use SSL.
Please refer to the below articles for detailed configuration steps:
