Summary
Problem

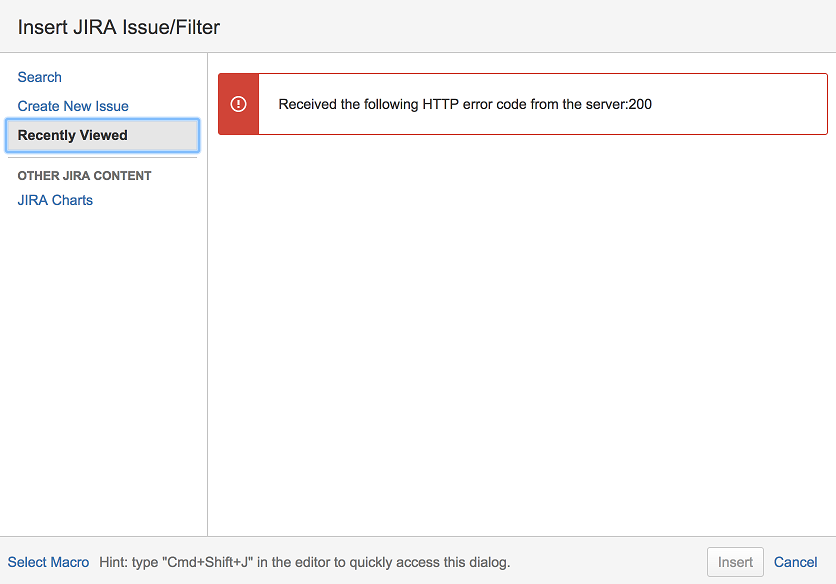

It's not possible to search for JIRA issues from Confluence pages or vice-versa. The following error appears when using Confluence Macros to search for JIRA issues:

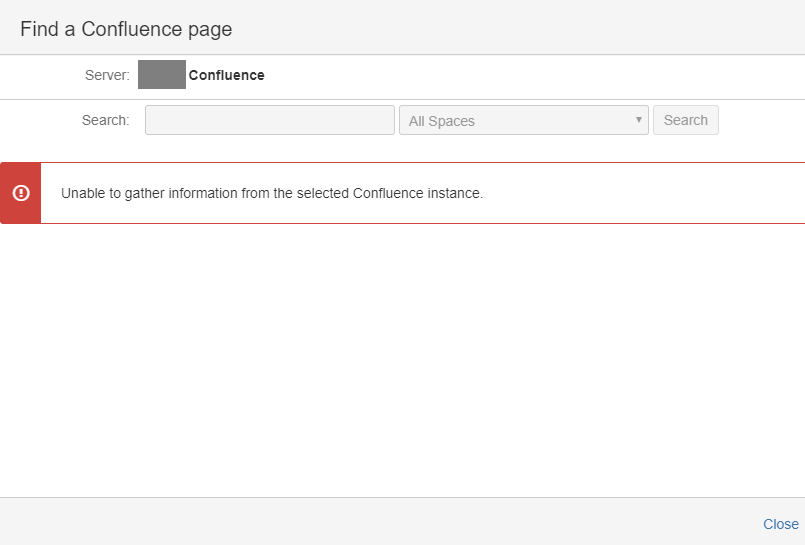

The following error appears when searching for Confluence pages from JIRA issues:
The following error is seen in JIRA log:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
2017-09-28 13:51:55,735 http-nio-8082-exec-13 ERROR username 831x100832x1 pqwz8l 10.200.200.141,0:0:0:0:0:0:0:1 /rest/confluenceIssueLink/1/confluence/space [c.a.p.r.c.error.jersey.ThrowableExceptionMapper] Uncaught exception thrown by REST service: Failed to parse Confluence Remote API response
java.lang.RuntimeException: Failed to parse Confluence Remote API response
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl.parseXml(ConfluenceRpcServiceImpl.java:330)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl.handleResponse(ConfluenceRpcServiceImpl.java:307)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl.access$300(ConfluenceRpcServiceImpl.java:46)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl$SpaceResponseHandler.handle(ConfluenceRpcServiceImpl.java:259)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl$SpaceResponseHandler.handle(ConfluenceRpcServiceImpl.java:251)
at com.atlassian.applinks.oauth.auth.OAuthApplinksResponseHandler$1.handle(OAuthApplinksResponseHandler.java:120)
at com.atlassian.applinks.oauth.auth.OAuthApplinksResponseHandler.handle(OAuthApplinksResponseHandler.java:76)
at com.atlassian.plugins.rest.module.jersey.JerseyRequest$2.handle(JerseyRequest.java:134)
at com.atlassian.sal.core.net.HttpClientRequest.executeAndReturn(HttpClientRequest.java:104)
at com.atlassian.plugins.rest.module.jersey.JerseyRequest.executeAndReturn(JerseyRequest.java:131)
at com.atlassian.applinks.core.auth.ApplicationLinkRequestAdaptor.execute(ApplicationLinkRequestAdaptor.java:58)
at com.atlassian.applinks.oauth.auth.OAuthRequest.execute(OAuthRequest.java:58)
at com.atlassian.applinks.oauth.auth.OAuthApplinksResponseHandler.handle(OAuthApplinksResponseHandler.java:73)
at com.atlassian.plugins.rest.module.jersey.JerseyRequest$2.handle(JerseyRequest.java:134)
at com.atlassian.sal.core.net.HttpClientRequest.executeAndReturn(HttpClientRequest.java:104)
at com.atlassian.plugins.rest.module.jersey.JerseyRequest.executeAndReturn(JerseyRequest.java:131)
at com.atlassian.applinks.core.auth.ApplicationLinkRequestAdaptor.execute(ApplicationLinkRequestAdaptor.java:58)
at com.atlassian.applinks.oauth.auth.OAuthRequest.execute(OAuthRequest.java:58)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl.getSpaces(ConfluenceRpcServiceImpl.java:188)
at com.atlassian.jira.plugin.link.confluence.service.rest.ConfluenceRestServiceImpl.getSpaces(ConfluenceRestServiceImpl.java:86)
at com.atlassian.jira.plugin.link.confluence.rest.ConfluenceResource.lambda$getSpaces$0(ConfluenceResource.java:99)
at com.atlassian.fugue.Either$LeftProjection.on(Either.java:698)
at com.atlassian.jira.plugin.link.confluence.rest.ConfluenceResource.getSpaces(ConfluenceResource.java:90)
...
Caused by: org.xml.sax.SAXParseException; lineNumber: 115; columnNumber: 3; The element type "meta" must be terminated by the matching end-tag "</meta>".
at org.apache.xerces.util.ErrorHandlerWrapper.createSAXParseException(Unknown Source)
at org.apache.xerces.util.ErrorHandlerWrapper.fatalError(Unknown Source)
at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source)
at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source)
at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source)
at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl.scanEndElement(Unknown Source)
at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl$FragmentContentDispatcher.dispatch(Unknown Source)
at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl.scanDocument(Unknown Source)
at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source)
at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source)
at org.apache.xerces.parsers.XMLParser.parse(Unknown Source)
at org.apache.xerces.parsers.AbstractSAXParser.parse(Unknown Source)
at org.apache.xerces.jaxp.SAXParserImpl$JAXPSAXParser.parse(Unknown Source)
at org.apache.xerces.jaxp.SAXParserImpl.parse(Unknown Source)
at javax.xml.parsers.SAXParser.parse(SAXParser.java:195)
at com.atlassian.jira.plugin.link.confluence.service.rpc.ConfluenceRpcServiceImpl.parseXml(ConfluenceRpcServiceImpl.java:324)
... 276 moreDiagnosis
JIRA and Confluence applinks are created successfully
Both apps use the same Authentication methods e.g. OAuth with Impersonation for both Incoming and Outgoing
The statuses of the applinks are both Connected
Confluence's Remote API is enabled
Cause
The issue is caused by a 3rd-party add-on. In this case it's 2-Factor Auth (2FA) Secure Login - JIRA. It's discovered that in the latest version of the add-on (1.4.1), JIRA's and Confluence's IP address/es must be whitelisted.
Solution
Resolution

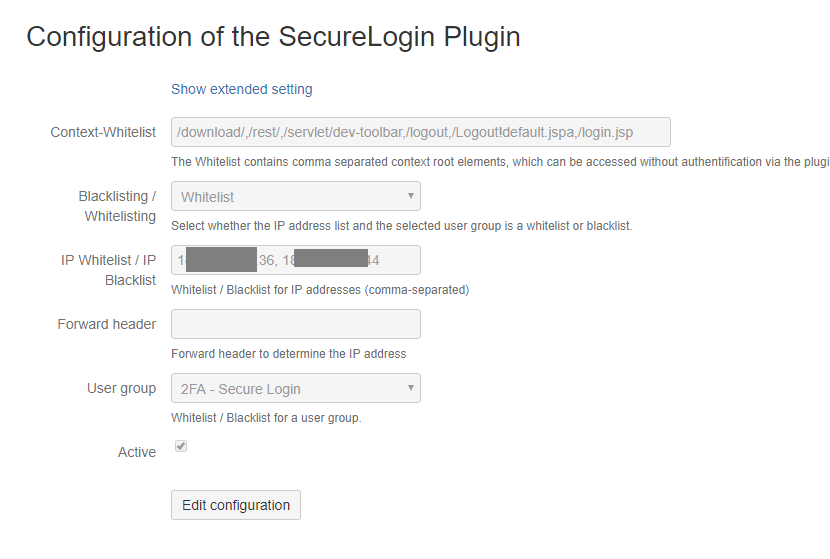

Whitelist JIRA's and Confluence's IP address/es via the add-on configuration:
