Javascript error "Cannot read property 'toString' of undefined" is thrown when accessing Control Chart report
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
Problem
When accessing the control chart report on the board, a javascript error is thrown.
The following appears in the browser:
1
2
3
4
Exception: Uncaught TypeError: Cannot read properties of undefined (reading 'toString')
Resource: http://localhost:42010/j82010/s/7d26c5885d31b8991f753c445f153fb4-CDN/pxfuiz/820010/1dlckms/cd8a9ac0970a299a4de45e330db511a2/_/download/contextbatch/js/gh-rapid-work,greenhopper-rapid-non-gadget,jira.project.sidebar,jira.global,atl.general,com.atlassian.jira.projects.sidebar.init,-_super/batch.js?agile_global_admin_condition=true&baseurl-check-resources=true&flexboards=true&healthcheck-resources=true&jag=true&jaguser=true&locale=en-AU&whisper-enabled=true
Line: 8673
Column: 1953Notice that it mentions Line: 8673 and Column: 1953. This is the line to focus on.
Diagnosis
Diagnostic Steps

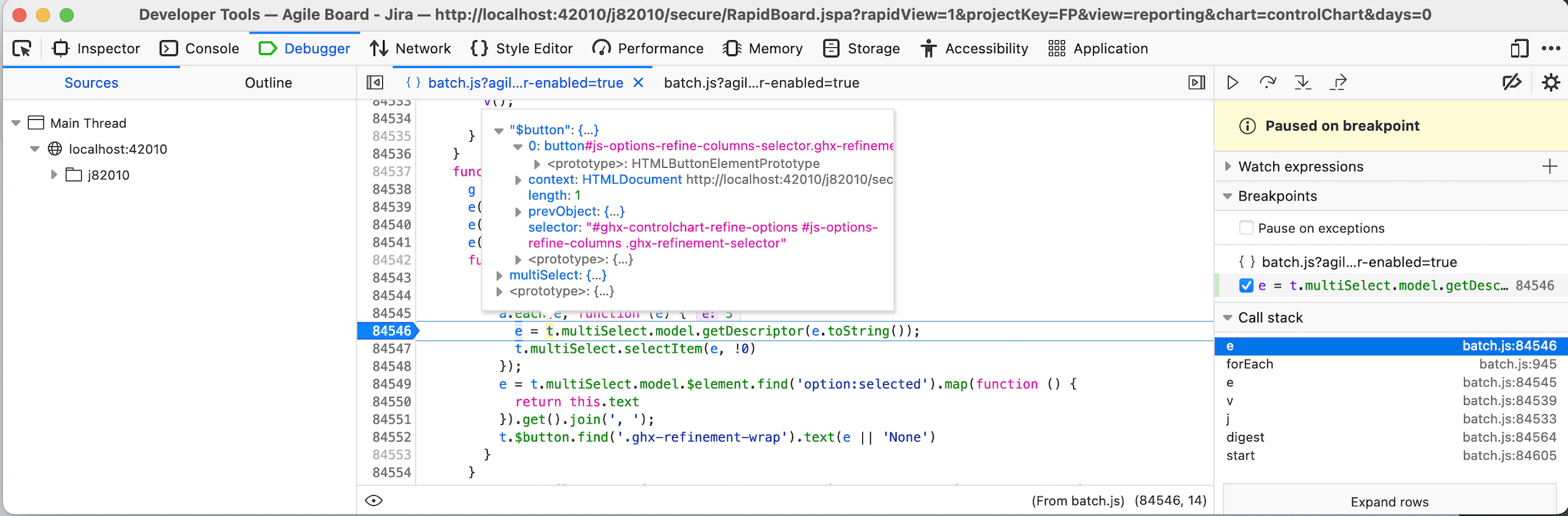

In the developer tool (under the Source or Debugger tab), we'll see the related line (in this case line 8673 - 1) refers to this module:
1
/* module-key = 'com.pyxis.greenhopper.jira:jira-agile-control-chart', location = 'includes/js/rapid/ui/chart/v2/controlchart/ControlChartRefinementsView.js' */We can add the breakpoint on line 8673 as this is the line number stated in the Javascript error.
As we expand this minified line, we'll see it's referring to e = t.multiSelect.model.getDescriptor(e.toString()) from this function
1
2
3
4
5
6
7
function e(t, e) {
if (t) {
t.multiSelect.clear();
a.each(e, function(e) {
e = t.multiSelect.model.getDescriptor(e.toString());
t.multiSelect.selectItem(e, !0)
});Refreshing the page will pause at the breakpoint and we'll see it indicates e = undefined
Using the developer tool of the Firefox browser, we could see t is referring to the Columns button (the drop-down menu on the control chart report).
And that there is no defined value for this Columns drop-down
Cause
On the board configuration > Column management page, there are no statuses being mapped to any of the columns.
Solution
Resolution
Map at least one status to one of the columns.
