How to import issue links from a CSV file in Jira

Summary

Purpose of this article

This article contains instructions to help in importing issue links to Jira from a CSV file.

Environment

Jira Data Center

Solution

Before you start

1. Issues referenced in the link columns must either already exist in Jira or be defined as new issues within the same CSV file using consistent Issue ID values across rows. If referencing pre-existing issues, use their exact issue key (e.g. PROJECT-123).

2. The link types you want to import must already be configured in Admin → Issues → Issue Linking. You will select the link type during the Map Fields step of the CSV import wizard — the CSV column header name does not need to match the link type name.

3. Back up your Jira instance before running a bulk import. There is no native bulk-delete for issue links — removing accidentally imported links requires manual effort or a ScriptRunner script.

4. Test with a small subset (10–20 rows) before running the full import to verify your column mapping is correct.

Importing issue links via CSV

The process for importing Issue Link through CSV is similar to importing Sub-tasks, as described in Importing Data from CSV. One column must be mapped to a respective issue, which may or may not exist already in Jira, and the other as the desired link type (e.g. 'X blocks Y').

When importing the issue link via CSV, Jira will consider the link you provide as the Outward link description. You can't choose between Inward or Outward links. This is currently being tracked in: JRASERVER-61571 - CSV Importer should allow user to choose to import Issue links as Outward or Inward Description.

In the CSV file, the column with the Outward Link Description you want to create a link, needs to have a value for the corresponding issue that the link should be created against. See the example below:

Once the CSV file is prepared like in the example above you can follow the steps from Importing data from CSV to import it. If the import is successful, you should end up with the following relationship between the issues:

• Issue1 (TEST-1): blocks Issue2 (TEST-2)

• Issue2 (TEST-2): clones Issue3 (TEST-3)

We will also have the Inward links created automatically.

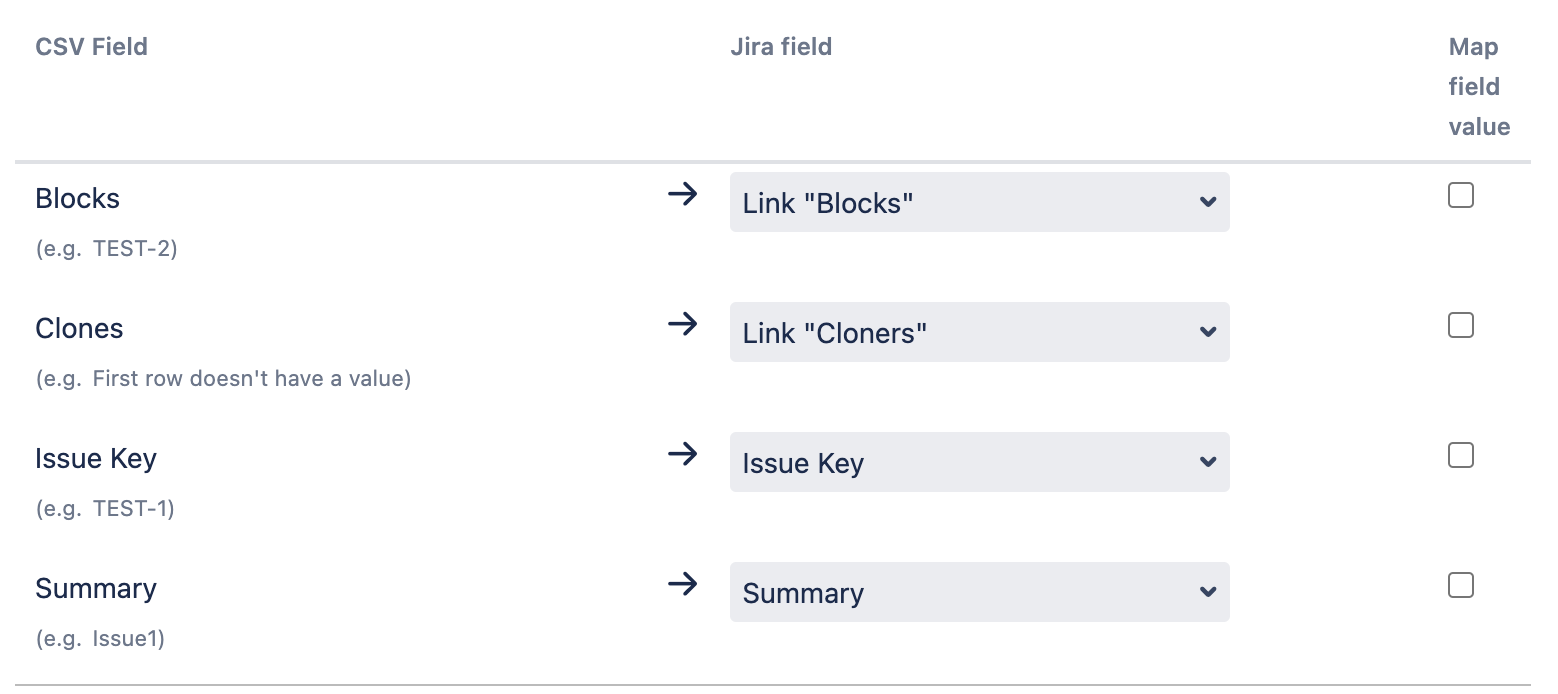

It's important to note that you need to select the proper Issue Link Type you want the import to create during the import. The column name isn't responsible for doing this, but you should use a name that helps you identify them in the import tool because you will need to associate the column with the link type in the Map Fields step of the CSV import, as in the example below:

If you have multiple links from the same issue to different issues, you can add these in two ways

• 1: Add a new line for each link

  Summary,Issue Key,Blocks,Clones Issue1,TEST-1,TEST-2, Issue1,TEST-1,TEST-3, ...

• 2: Add an extra column

  Summary,Issue Key,Blocks,Blocks,Clones Issue1,TEST-1,TEST-2,TEST-3, ...

Both the above options will create 2 links:

• Issue1 (TEST-1): blocks Issue2 (TEST-2)

• Issue1 (TEST-1): blocks Issue3 (TEST-3)

Optionally, you can also create new Jira issues with their respective issue links. However, for this you need to correctly specify the issue keys that Jira will create once those issues are imported, otherwise, the issue linking will happen to the wrong issue keys.

The easiest way to identify the next issue keys that will be used for the projects you are importing data against is by creating a new issue on them and checking the number in the issue key. For example, if you create a new issue in the project called TEST and the issue key is TEST-299; The next issue key should be TEST-300.

During this time, you need to ensure that users are not actively creating issues on those projects. We usually see that it's easier to follow a two-step approach in such scenarios:

1. First, create the issues using one CSV file;

2. Import the issue links using a separate CSV file, using the issue keys you obtained after the step above.

Common import errors

When CSV import isn't the right tool:

CSV link import is the right tool when:

• You're migrating from another system and have a structured link mapping.

• You're setting up a one-time bulk link.

It is NOT the right tool when:

• You want links created based on future events — use an Automation for Jira rule instead.

• You want bi-directional sync with an external system — use an integration app (e.g., Exalate, Unito).

• The link relationship needs to enforce a workflow constraint — use validators/conditions, not links.

Related articles:

• Importing data from CSV — canonical Jira DC importer documentation

• Configuring issue linking — how to create and manage link types
