Health Check: OpenSearch Cluster

Summary

The OpenSearch cluster health check monitors the health status of an OpenSearch cluster in Jira Data Center environments. When OpenSearch is configured, this health check runs and helps identify cluster issues that could impact Jira's search functionality.

Solution

Understand the health check results

Diagnose cluster health issues

When the OpenSearch cluster health check reports WARNING or CRITICAL status, use these diagnostic commands to understand the root cause

1. Check OpenSearch connectivity If Jira is unable to provide the health check status, there might be an issue with connecting to the OpenSearch cluster. Review the <jira-home>/log/atlassian-jira.log for errors and ensure that the OpenSearch properties in <jira-home>/jira-config.properties are correctly configured.

2. Check shard status OpenSearch provides the Cat Shards API, which is useful for understanding the current state of each shard in an OpenSearch cluster. The following command can be run to identify which shards are affecting the OpenSearch cluster health:

   GET /_cat/shards?v&h=index,shard,prirep,state,unassigned.reason

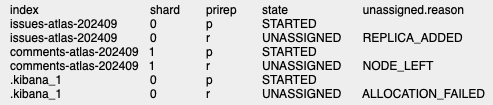

   Example Output:



   Key Columns

   • index: Name of the affected index

   • shard: Name of the shard

   • prirep: Shard type(primary or replica)

   • state:

     • INITIALIZING: The shard is recovering from a peer shard or gateway

     • RELOCATING: The shard is relocating

     • STARTED: The shard has started

     • UNASSIGNED: The shard is not assigned to any node

   • unassigned.reason: Reason shard is unassigned

     List of unassigned reasons

     INDEX_CREATED: Unassigned as a result of an API creation of an index CLUSTER_RECOVERED: Unassigned as a result of a full cluster recovery INDEX_REOPENED: Unassigned as a result of opening a closed index DANGLING_INDEX_IMPORTED: Unassigned as a result of importing a dangling index NEW_INDEX_RESTORED: Unassigned as a result of restoring into a new index EXISTING_INDEX_RESTORED: Unassigned as a result of restoring into a closed index REPLICA_ADDED: Unassigned as a result of explicit addition of a replica ALLOCATION_FAILED: Unassigned as a result of a failed allocation of the shard NODE_LEFT: Unassigned as a result of the node hosting it leaving the cluster REROUTE_CANCELLED: Unassigned as a result of explicit cancel reroute command REINITIALIZED: When a shard moves from started back to initializing REALLOCATED_REPLICA: A better replica location is identified and causes the existing replica allocation to be cancelled PRIMARY_FAILED: Unassigned as a result of a failed primary while the replica was initializing FORCED_EMPTY_PRIMARY: Unassigned after forcing an empty primary MANUAL_ALLOCATION: Forced manually to allocate INDEX_CLOSED: Unassigned as a result of closing an index

3. Get detailed allocation explanation Unassigned shards can be further investigated using the Cluster Allocation Explain API, which provides a detailed explanation of why they cannot be allocated to a node.

   GET /_cluster/allocation/explain { "index": "issues-atlas-202409", "shard": 0, "primary": false }

   Example Output:

   { "index": "issues-atlas-202409", "shard": 0, "primary": false, "current_state": "unassigned", "unassigned_info": { "reason": "NODE_LEFT", "at": "2025-09-17T07:57:39.402Z", "details": "node_left [TK848AjkRpyej-eQvJ7wsw]", "last_allocation_status": "no_valid_shard_copy" }, "can_allocate": "no_valid_shard_copy", "allocate_explanation": "cannot allocate because a previous copy of the primary shard existed but can no longer be found on the nodes in the cluster", "node_allocation_decisions": [ { "node_id": "8j9QlgKySnWO0cRfW0ZSnw", "node_name": "opensearch-node2", "transport_address": "172.18.0.4:9300", "node_attributes": { "shard_indexing_pressure_enabled": "true" }, "node_decision": "no", "store": { "found": false } } ] }

Common shards allocation issues and solutions

Disk space issues

An OpenSearch cluster may prevent the allocation of shards when disk usage exceeds the configured watermarks.

Solution 1

Archiving Jira projects that are not actively used can help reduce OpenSearch disk usage.

Solution 2

Delete unused indexes generated by a failed full reindexing.

1. Go to OpenSearch Dashboards > Index Management > Indexes.

2. In the search box, type issues-.

3. For each index, select the name to view details:

   • Select Alias to see if it has the alias issues. If it does not, you can safely delete the index.

For more information about OpenSearch disk usage and configuration, refer to the OpenSearch Cluster settings documentation.

Insufficient nodes for shards

When there are not enough data nodes to accommodate the shards, they may not be allocated to the OpenSearch cluster. Refer to our OpenSearch Hardware recommendations in Jira Data Center to understand the required number of data nodes and consider scaling up accordingly.

Other shards allocation issues

For more information about OpenSearch cluster health and shards allocation issues, refer to the OpenSearch Cluster Health API documentation.
