Creating Application Link throws Echo response is inconsistent with request in JIRA
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
Problem
When creating a new Application Link an Error banner is displayed behind the Application Link modal. The modal does not go away until you click Cancel.

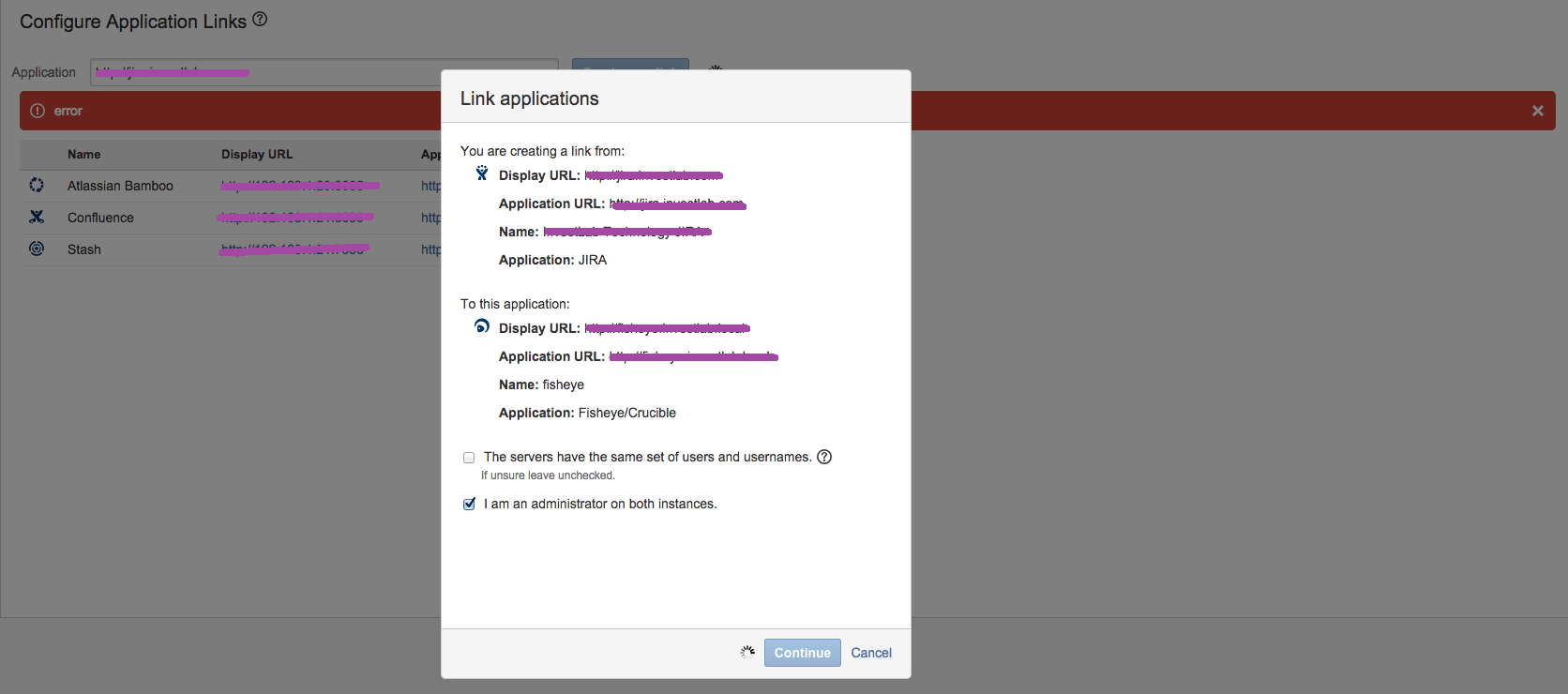

As illustrated in the screenshot:
Diagnosis
Diagnostic Steps
To better understand why the link does not get created successfully, we can use the browser's developer tools.
See Generating HAR files and analyzing web requests for more details
The HAR File shows us the response is 401 Unauthorized
With the use of Applinks Diagnostics Plugin we can further diagnose why the Application Link fails to create. In this example you'll see the echo response test is failing:
1 2 3 4 5 6 7 8 9 10HTTP Echo: fail . . . Request URL is inconsistent. Sent [http://stash."...".local/plugins/servlet/applinksDiagnostics/echo] Received [http://patlah1inf01."...".local:7990/plugins/servlet/applinksDiagnostics/echo] Echo response is inconsistent with request1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19Authentication Check: warn Server date: Mon, 18 May 2015 01:36:19 GMT Attempting authentication of link to Stash Checking if OAuthAuthenticationProvider is configured OAuthAuthenticationProvider is configured for Stash, trying authentication Attempting to request http://stash.investlab.local/plugins/servlet/applinksDiagnostics/authenticate OAuthAuthenticationProvider Failed to get token from service provider, problem was: 'signature_invalid' Failed to connect using OAuthAuthenticationProvider to StashBy comparing a HAR file and results of the Application Diagnostics you'll see that there is a problem with authentication.
Cause
One of the applications is accessed through a reverse proxy, while the other one is not.
Solution
Workaround
Bypass the proxy on both sides and try creating the Application Link again.
ℹ️ You can bypass a proxy by setting up a second connector in Tomcat to be used specifically for the application link. For more details take a look at Step 1.3 of Integrating JIRA with Apache
