Jira Connector for Jira Align - Supported Jira Structures
Platform Notice: Cloud and Data Center - This article applies equally to both cloud and data center platforms.
Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
There are a number of different structures for how projects are used (and relate to each other) that are possible in Jira. Not all of the structures that are possible in Jira are compatible with Jira Align.
This article defines which structures are supported when using the Jira Connector for Jira Align and discusses the benefits and impact of the different structures
⚠️ Deciding how to structure Projects in Jira is an important step during pre-integration of Jira and Jira Align. Each environment is unique and careful consideration should be taken to implement an approach that best needs the business operations and requirements. If unsure then consider working with Atlassian's Advisory Services team / Solutions Architects and/or an Atlassian Partner to decide on and implement a suitable structure.
ℹ️ The information in this article came from best practices provided by Atlassian's Solution Architects
Environment
Jira Align
Solution
The Jira Connector supports 4 Jira Structures
1 Project with multiple Boards
1 Program project with multiple Team projects
Separate Team projects
Multiple Projects and multiple team boards
The Jira Connector does NOT support
Multiple Boards for a Single Team
One Board to Multiple Projects to Multiple Programs
More specific details on each of these structures is provided below:
ℹ️ Clicking on the images in the table should open them full screen, if it does not then try using right-click to select Open Image in New Tab (or your browser specific equivalent)

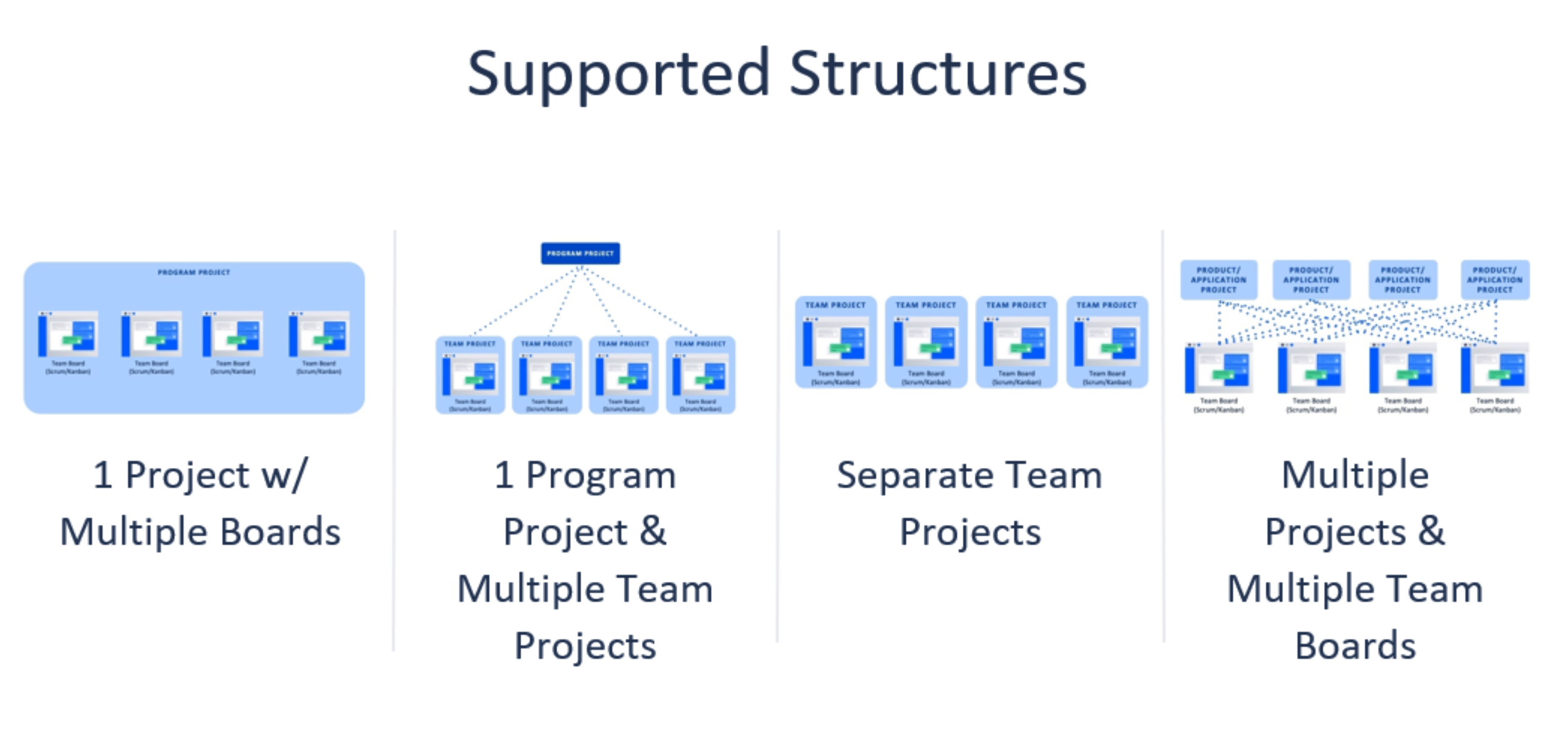

Supported Jira Structures

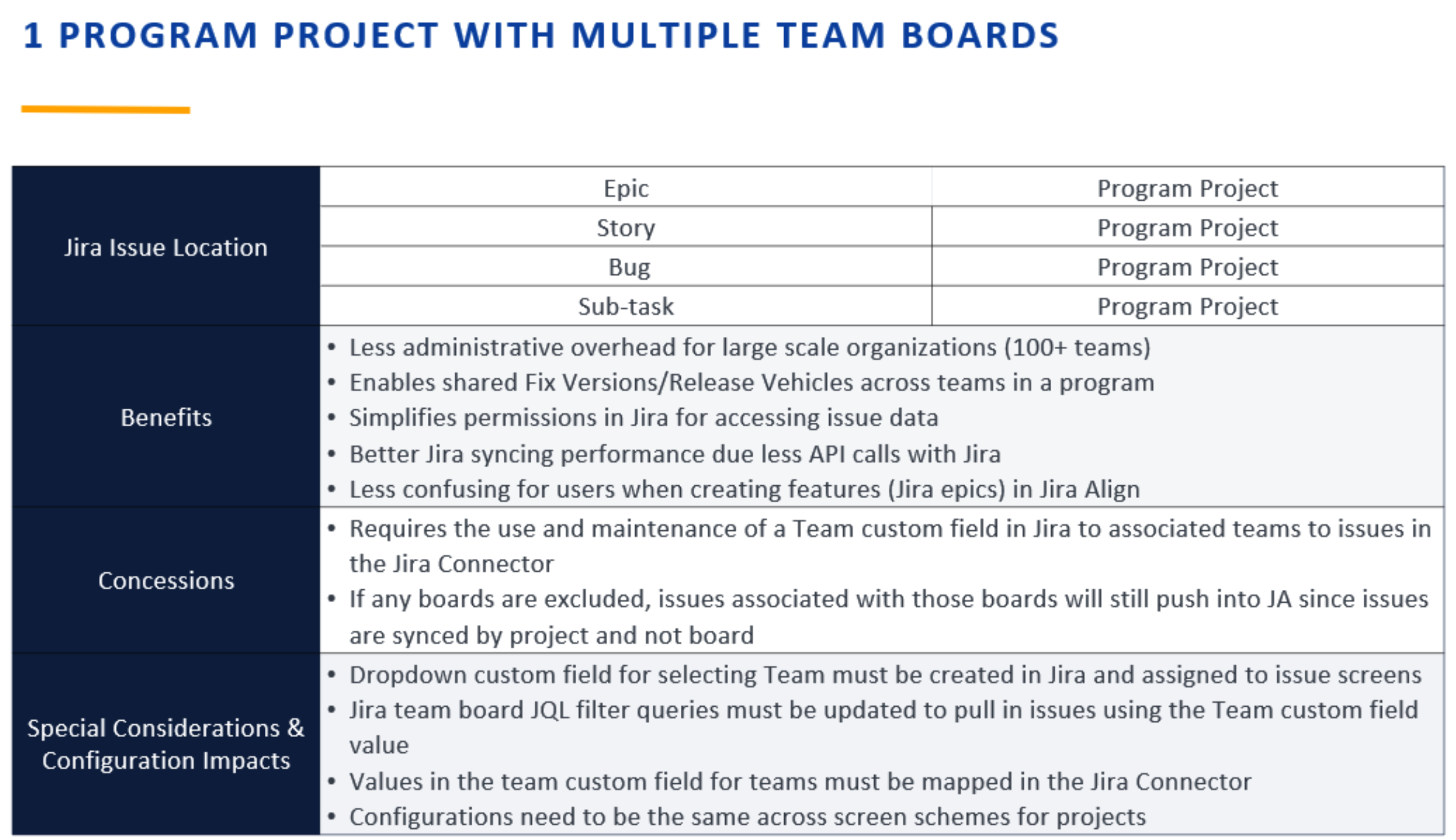

1 Project with Multiple Boards

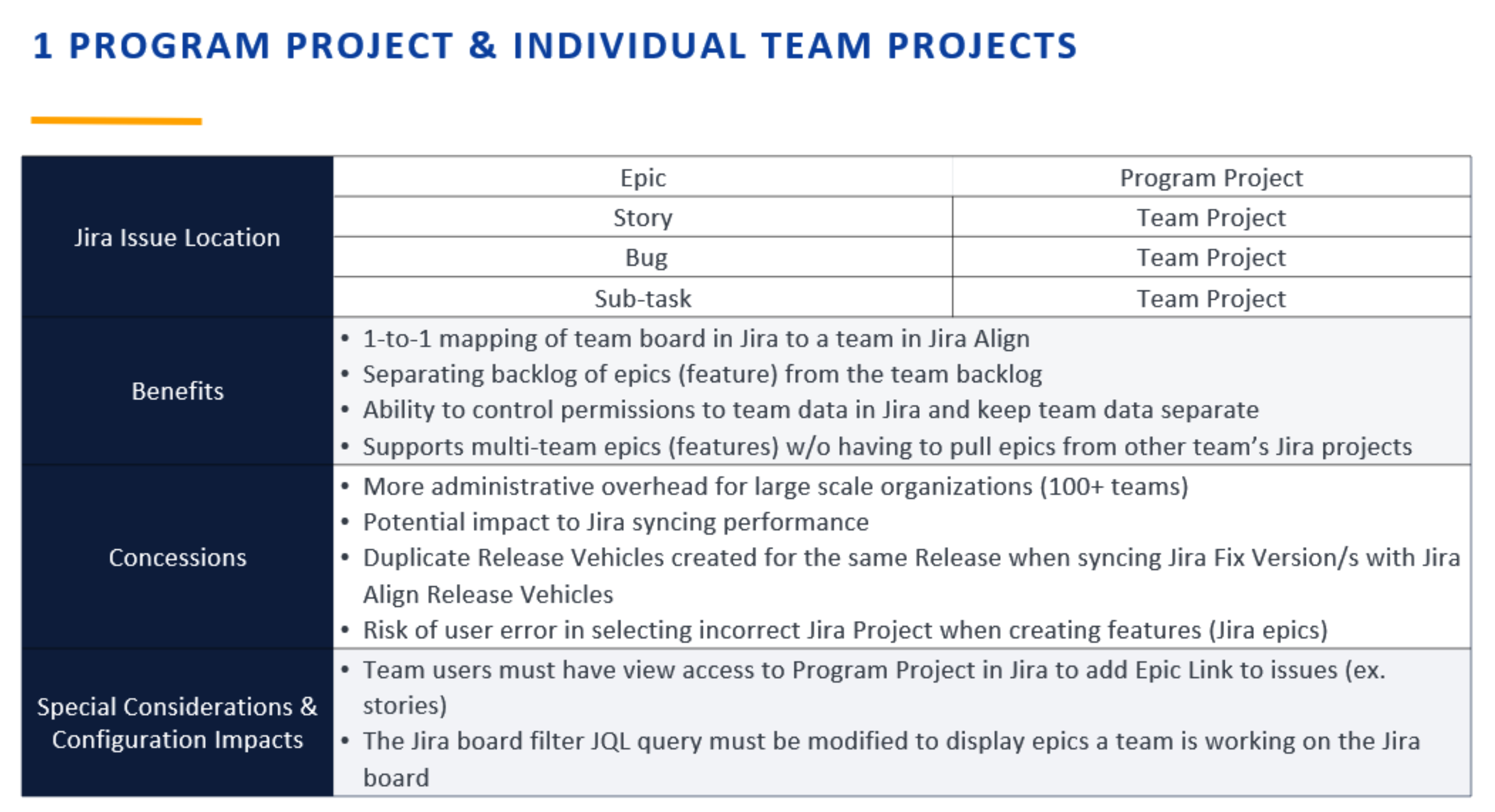

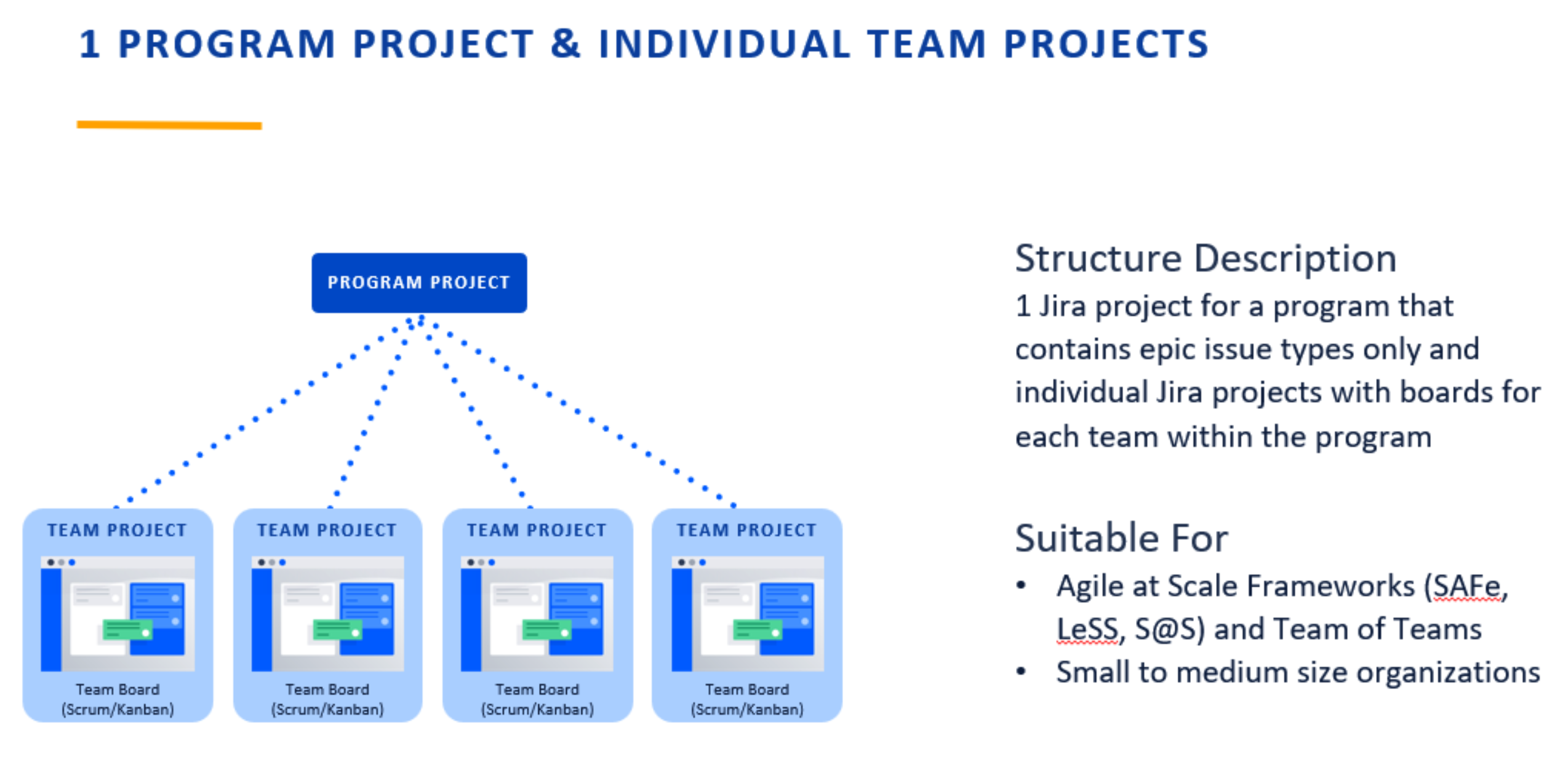

1 Program Project & Multiple Team Projects

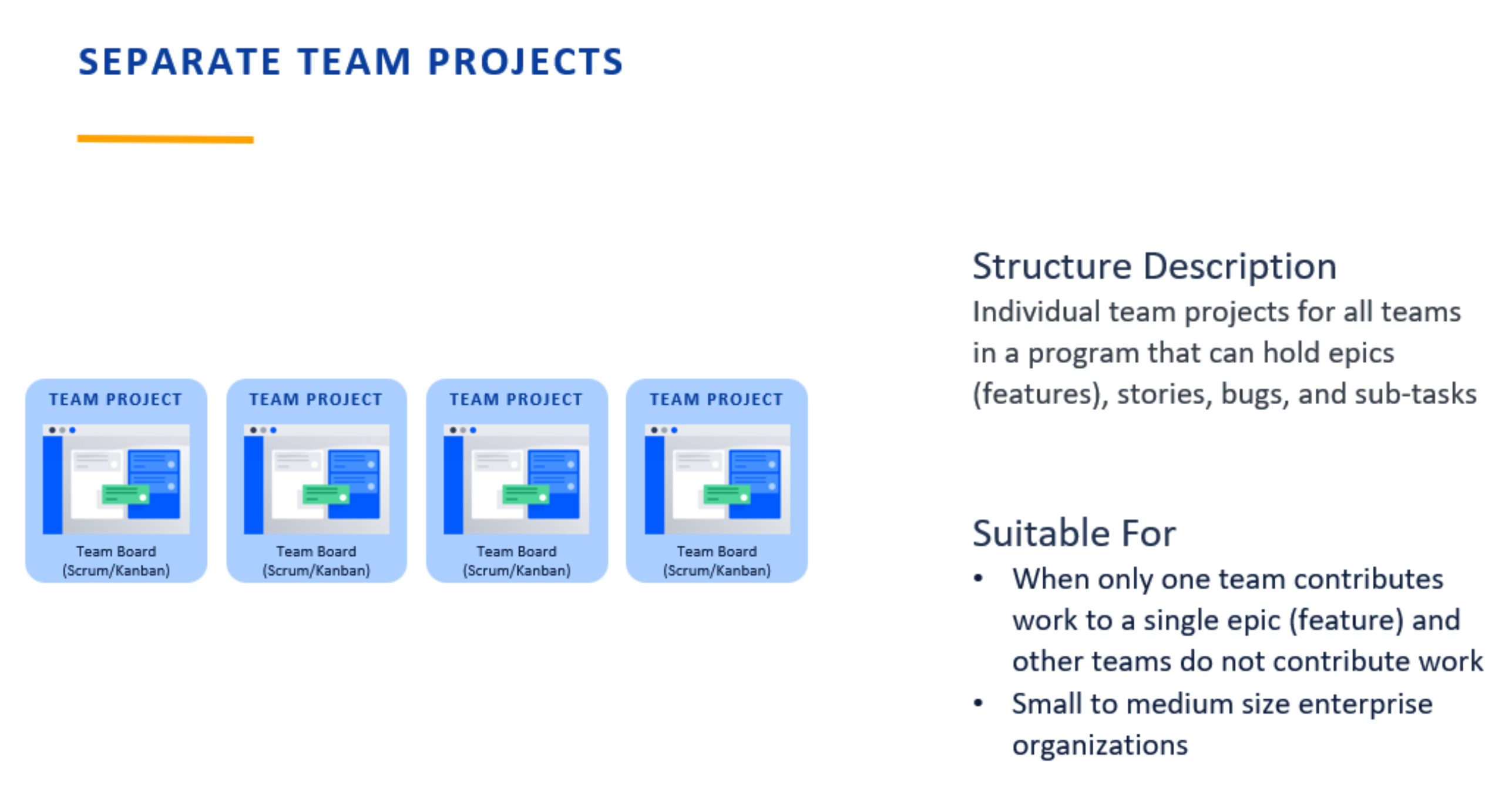

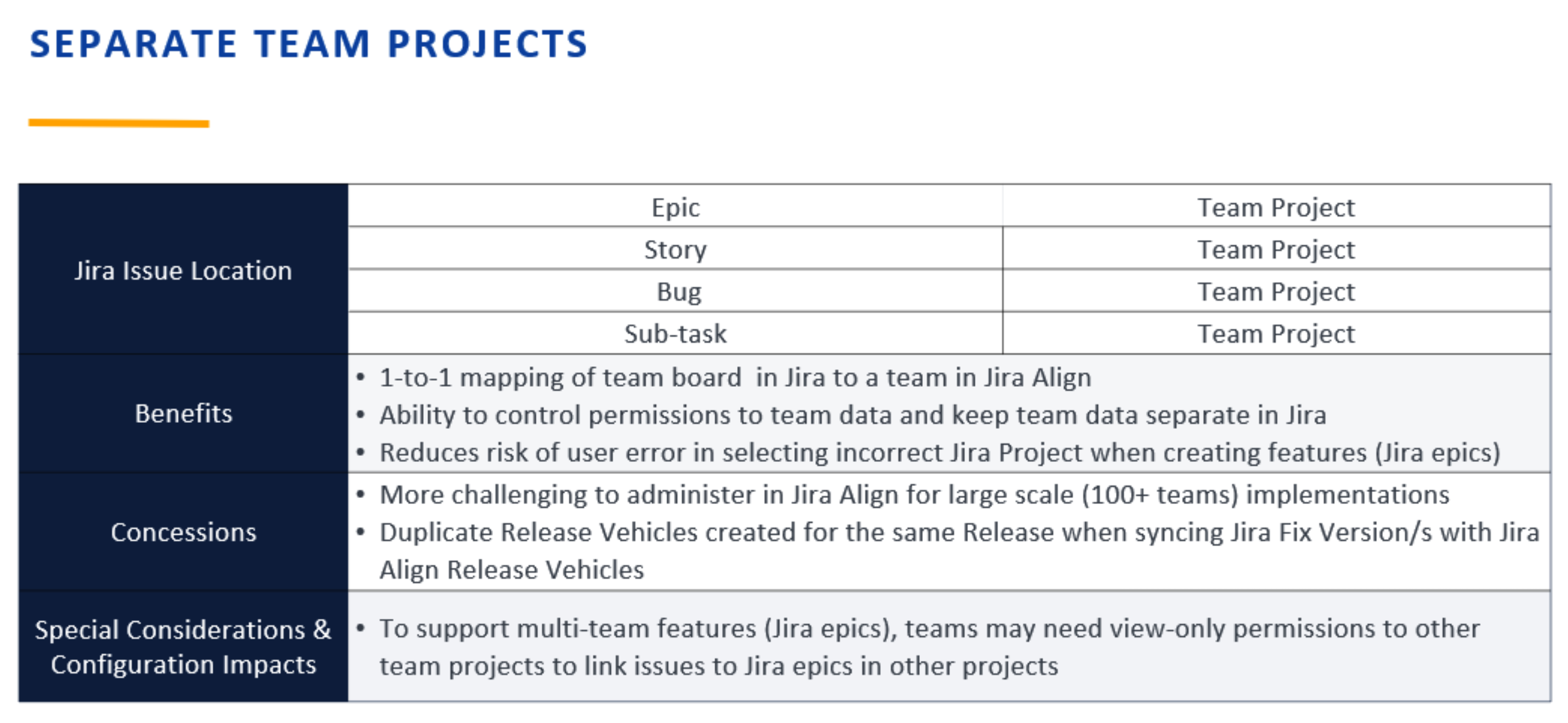

Separate Team Projects

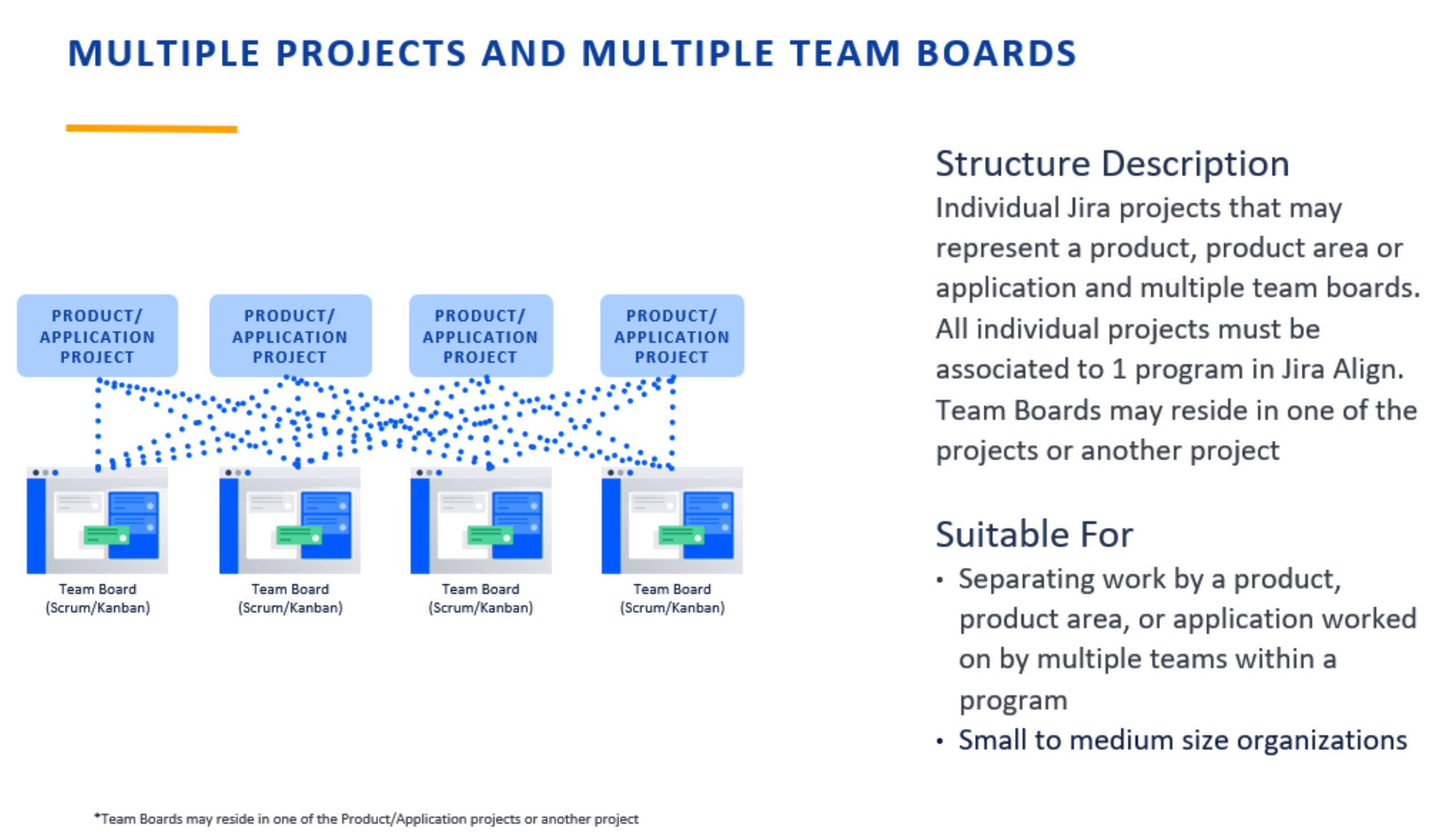

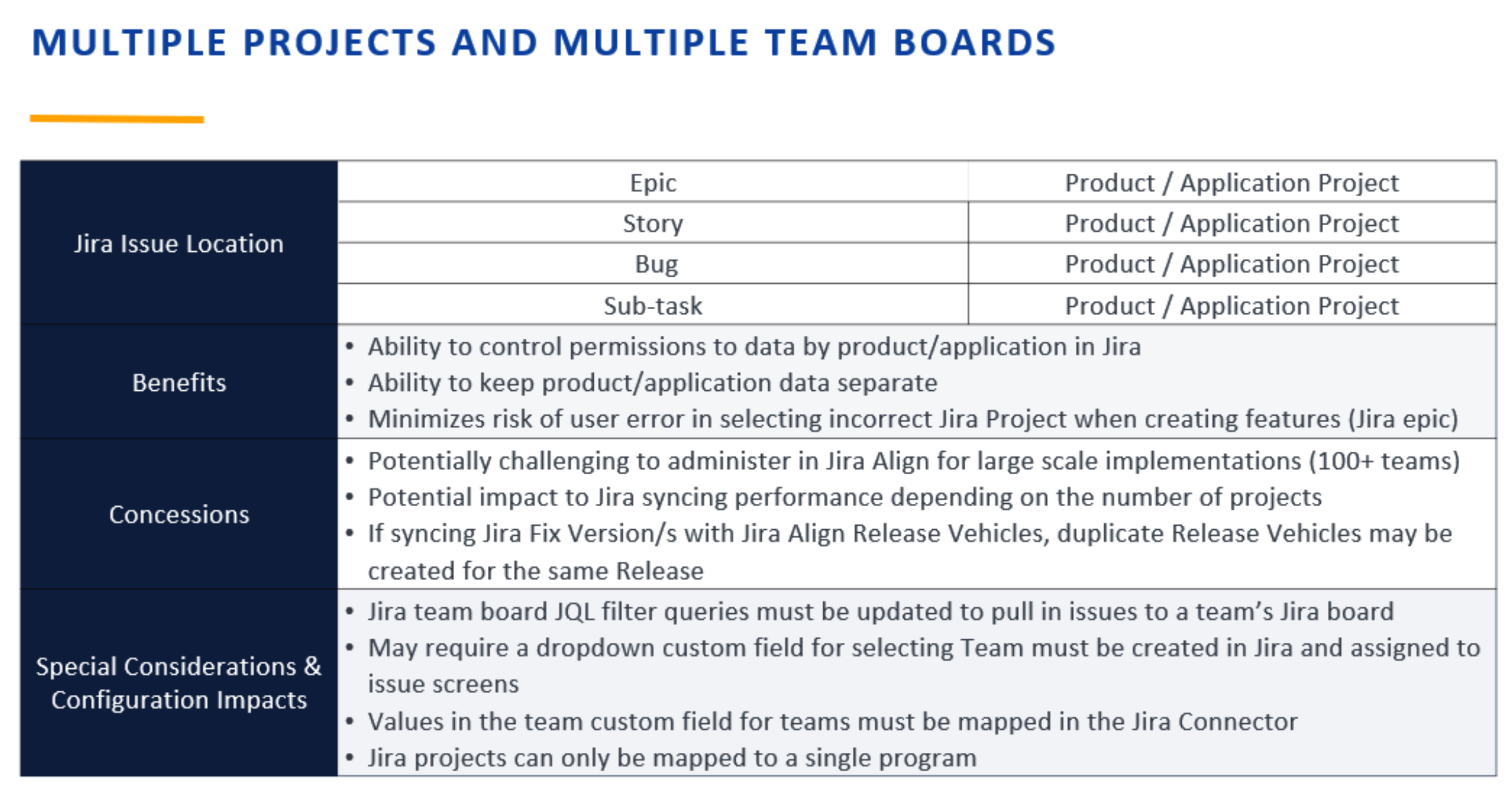

Multiple Projects & Multiple Team Boards

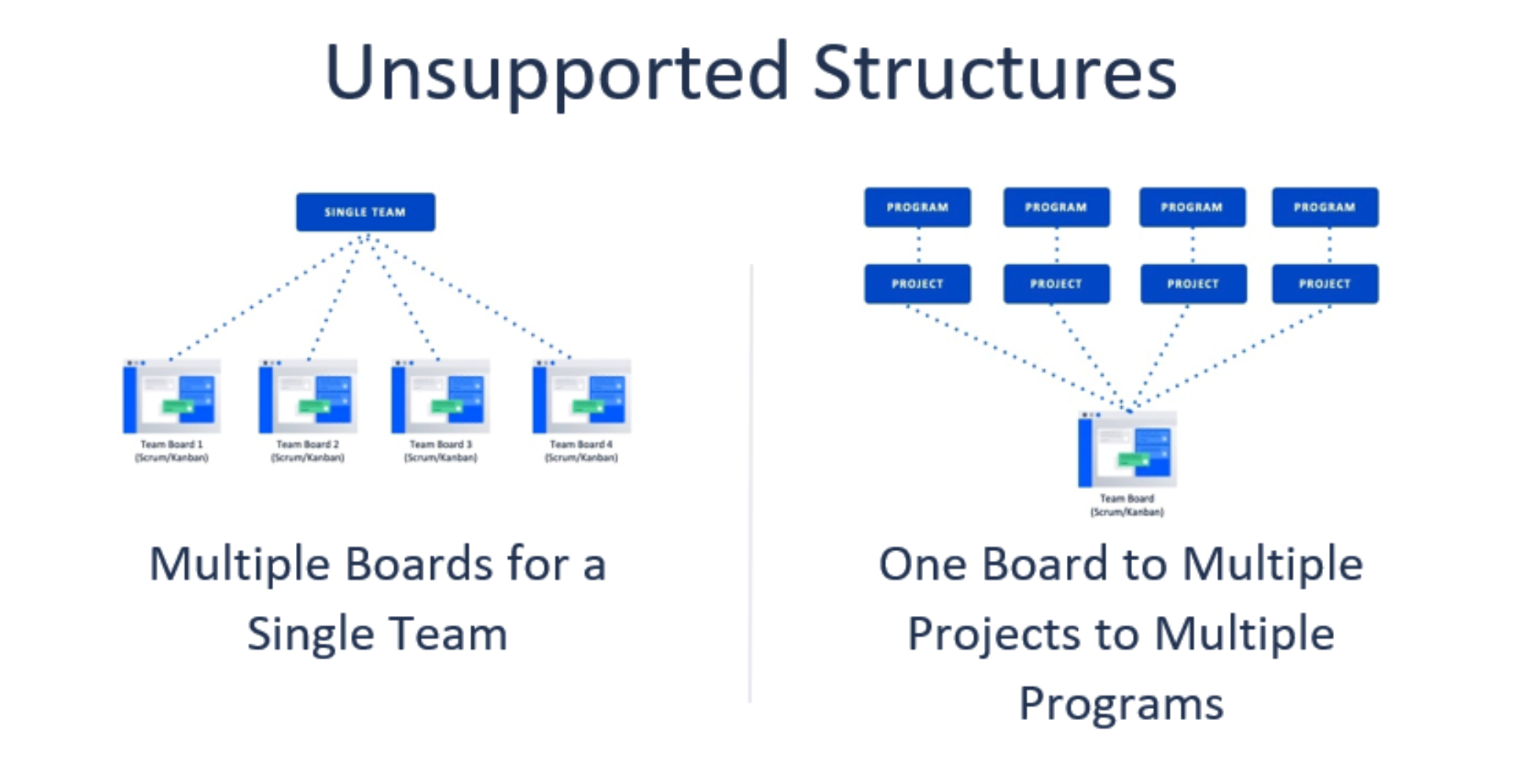

Unsupported Jira Structures

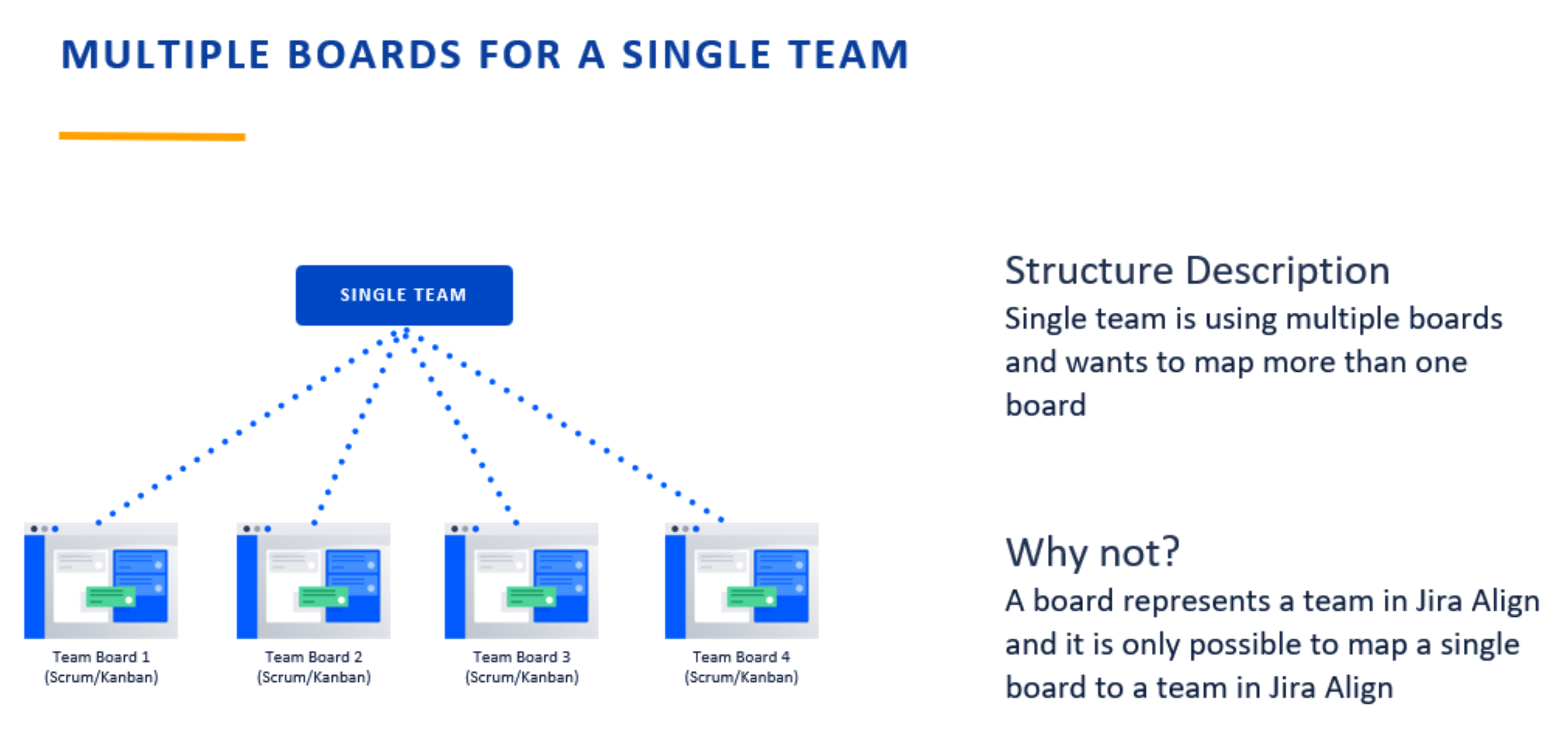

Multiple Boards for a Single Team
A board represents a team in Jira Align and it is only possible to map a single board to a single team in Jira Align
One Board to Multiple Projects to Multiple Programs
Projects can only be mapped to a single Jira Align program. A team in Jira Align can only belong to a single program. Teams can not own issues across programs.
Related Content:
Thoughts on the "best" structure in Jira to integrate Jira Align & Jira
