Unable to create Application links due to "PKIX Path Building Failed" error when fisheye is configured with custom truststore on config.xml
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
Fisheye is configured with a custom SSL Truststore on $FISHEYE_INST/config.xml, and the Application Link creation from Fisheye to other Atlassian applications(Jira, Bitbucket) is failing with PKIX path building failed error.
Environment
4.x
Diagnosis

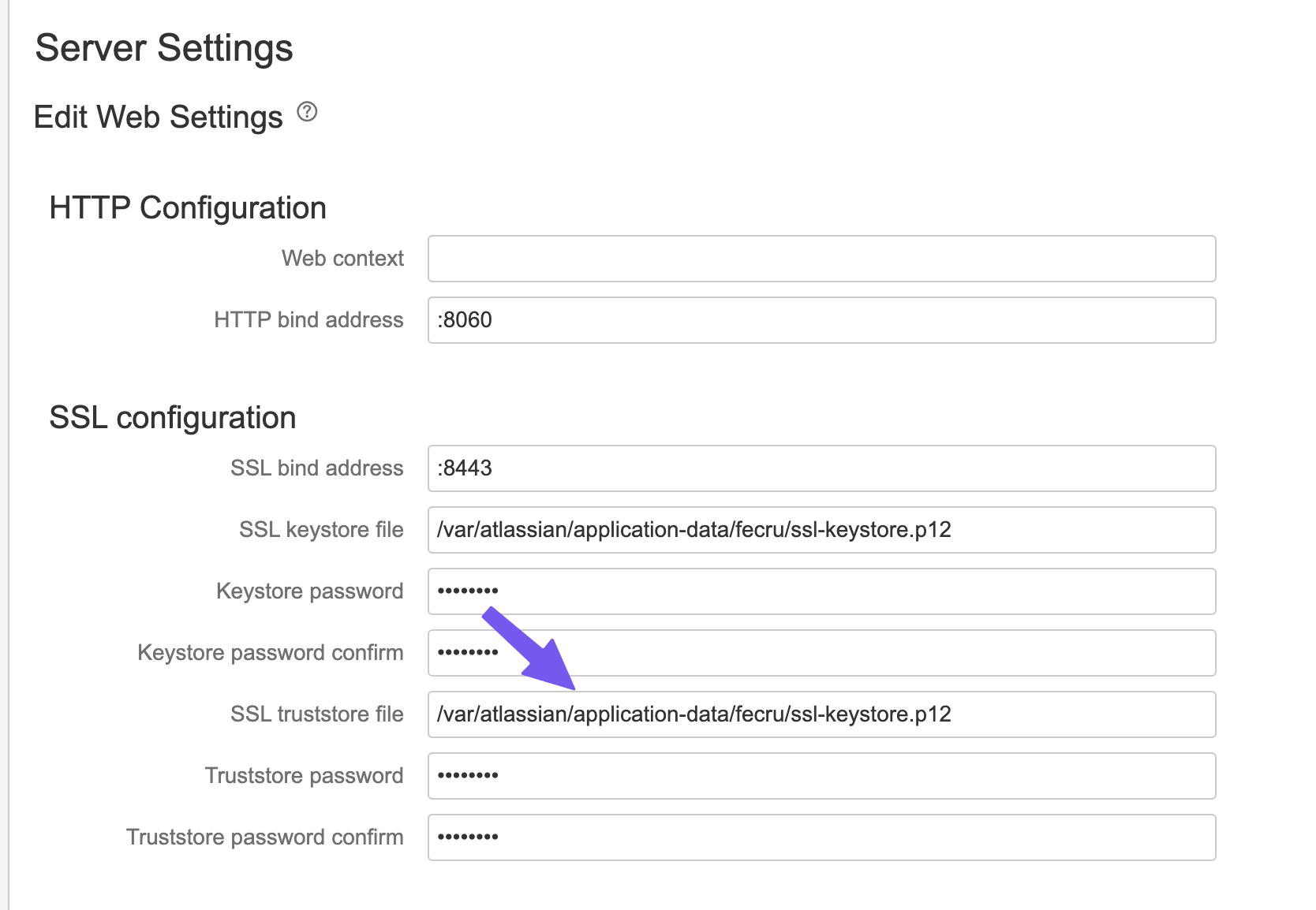

$FISHEYE_INST/config.xml
1
2
3
4
<web-server site-url="https://fisheye.instenv.com">
<ssl keystore-password="Sanitized by Support Utility" bind=":8443" truststore-password="Sanitized by Support Utility" truststore="/var/atlassian/application-data/fecru/ssl-keystore.p12" keystore="/var/atlassian/application-data/fecru/ssl-keystore.p12"><excludeProtocols><protocol>SSLv3</protocol></excludeProtocols></ssl>
<http bind=":8060" proxy-host="fisheye.instenv.com" proxy-port="443" proxy-scheme="https"/>
</web-server>Error on Fisheye logs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
2022-12-10 10:00:44,408 ERROR [qtp1871612052-170 ] com.atlassian.applinks.core.rest.ui.CreateApplicationLinkUIResource CreateApplicationLinkUIResource-tryToFetchManifest - ManifestNotFoundException thrown while retrieving manifest
com.atlassian.applinks.spi.manifest.ManifestNotFoundException: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader.doDownload(AppLinksManifestDownloader.java:207) [applinks-plugin-5.4.28_1655717282000.jar:?]
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader.access$000(AppLinksManifestDownloader.java:52) [applinks-plugin-5.4.28_1655717282000.jar:?]
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader$1$1.<init>(AppLinksManifestDownloader.java:129) [applinks-plugin-5.4.28_1655717282000.jar:?]
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader$1.load(AppLinksManifestDownloader.java:123) [applinks-plugin-5.4.28_1655717282000.jar:?]
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader$1.load(AppLinksManifestDownloader.java:120) [applinks-plugin-5.4.28_1655717282000.jar:?]
at com.google.common.cache.LocalCache$LoadingValueReference.loadFuture(LocalCache.java:3527) [guava-18.0.jar:?]
.......
at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:131) [jetty-util-9.4.44.v20210927.jar:9.4.44.v20210927]
at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:409) [jetty-util-9.4.44.v20210927.jar:9.4.44.v20210927]
at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:883) [jetty-util-9.4.44.v20210927.jar:9.4.44.v20210927]
at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1034) [jetty-util-9.4.44.v20210927.jar:9.4.44.v20210927]
at java.lang.Thread.run(Thread.java:750) [?:1.8.0_332]
Caused by: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
at sun.security.ssl.Alert.createSSLException(Alert.java:131) [?:1.8.0_332]
at sun.security.ssl.TransportContext.fatal(TransportContext.java:324) [?:1.8.0_332]
at sun.security.ssl.TransportContext.fatal(TransportContext.java:267) [?:1.8.0_332]
at sun.security.ssl.TransportContext.fatal(TransportContext.java:262) [?:1.8.0_332]
at sun.security.ssl.CertificateMessage$T12CertificateConsumer.checkServerCerts(CertificateMessage.java:654) [?:1.8.0_332]
at sun.security.ssl.CertificateMessage$T12CertificateConsumer.onCertificate(CertificateMessage.java:473) [?:1.8.0_332]
......
at org.apache.http.impl.execchain.RedirectExec.execute(RedirectExec.java:110) [httpclient-4.5.13.jar:4.5.13]
at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:185) [httpclient-4.5.13.jar:4.5.13]
at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83) [httpclient-4.5.13.jar:4.5.13]
at com.atlassian.sal.core.net.HttpClientRequest.executeAndReturn(HttpClientRequest.java:105) [?:?]
at com.atlassian.plugins.rest.module.jersey.JerseyRequest.executeAndReturn(JerseyRequest.java:131) [atlassian-rest-module-3.4.16_1655717282000.jar:?]
at com.atlassian.plugins.rest.module.jersey.JerseyRequest.execute(JerseyRequest.java:113) [atlassian-rest-module-3.4.16_1655717282000.jar:?]
at com.atlassian.applinks.core.manifest.AppLinksManifestDownloader.doDownload(AppLinksManifestDownloader.java:174) [applinks-plugin-5.4.28_1655717282000.jar:?]
... 214 more
Caused by: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
at sun.security.validator.PKIXValidator.doBuild(PKIXValidator.java:456) [?:1.8.0_332]
at sun.security.validator.PKIXValidator.engineValidate(PKIXValidator.java:323) [?:1.8.0_332]
at sun.security.validator.Validator.validate(Validator.java:271) [?:1.8.0_332]
at sun.security.ssl.X509TrustManagerImpl.validate(X509TrustManagerImpl.java:315) [?:1.8.0_332]
at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:223) [?:1.8.0_332]
at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:129) [?:1.8.0_332]
at sun.security.ssl.CertificateMessage$T12CertificateConsumer.checkServerCerts(CertificateMessage.java:638) [?:1.8.0_332]
... 239 more
Caused by: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
at sun.security.provider.certpath.SunCertPathBuilder.build(SunCertPathBuilder.java:141) [?:1.8.0_332]
at sun.security.provider.certpath.SunCertPathBuilder.engineBuild(SunCertPathBuilder.java:126) [?:1.8.0_332]
at java.security.cert.CertPathBuilder.build(CertPathBuilder.java:280) [?:1.8.0_332]
at sun.security.validator.PKIXValidator.doBuild(PKIXValidator.java:451) [?:1.8.0_332]
... 245 more Cause
The Fisheye is configured with a custom SSL Truststore on the
$FISHEYE_INST/config.xmlfileWhile creating the Application link from Fisheye to other Atlassian applications(Jira, Bitbucket) the Java used by Fisheye is looking to verify the target application SSL cert on the default truststore location
$JAVA_HOME/jre/lib/security/cacertsand not looking for the trusted cert entry on the SSL Truststore defined on$FISHEYE_INST/config.xmlthis is due to the bug FE-7531 - SSL Truststore configuration in config.xml does not work as expected.So if the target SSL certificate is not added on the default Java Truststore location and only added to the SSL Truststore on the
$FISHEYE_INST/config.xmlfile then the Application link creation would throw thePKIX path building failederror.
Solution
The application link creation request when initiated from the Fisheye is looking to verify the target application URL on the default Java Truststore location $JAVA_HOME/jre/lib/security/cacerts when no custom Truststore is set on the JVM argument, defining that on the SSL Truststore on the $FISHEYE_INST/config.xml doesn't get considered due to the bug FE-7531 - SSL Truststore configuration in config.xml does not work as expected.
Resolution 1
Add the self-signed certificate of the target application to Java's system-wide truststore:
Java 8:
$JAVA_HOME/jre/lib/security/cacerts
Resolution 2
It is also possible to use a different truststore by specifying a JVM parameter on the
FISHEYE_OPTS, -Djavax.net.ssl.trustStore=/path/to/truststore, where '/path/to/truststore' is the absolute file path of the alternative truststore. Information on how to configureFISHEYE_OPTSstartup variables can be found here.⚠️ However, setting this is not recommended because if Java is told to use a custom truststore (eg. containing only a self-signed certificate), then Java will not have access to the root certificates of signing authorities found in
$JAVA_HOME/jre/lib/security/cacerts, and accessing most CA-signed SSL sites will fail. It is better to add new certificates (eg. self-signed) to the system-wide truststore ($JAVA_HOME/jre/lib/security/cacerts).
