SSO Troubleshooting With Instances Running Proxy
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Problem
This documentation covers the troubleshooting of the following scenarios when SSO Crowd does not work after implementing proxy in your system:
SSO works before applying proxy. After applying proxy, SSO does not work however all application still work and users are able to log in to all applications.
After applying proxy, SSO does not work and users are not able to log in to an Atlassian Application (for example, to Confluence).
Scenario 1:
After applying proxy:
Able to log in to Crowd and its applications
SSO is not working
Possible cause and Diagnosis steps:
The fact that users are able to log in to an application is an evident that the seraph-config.xml and the crowd.properties configuration are good.
Issue would be the domain name settings from the UI level
Configuration needed to be checked:

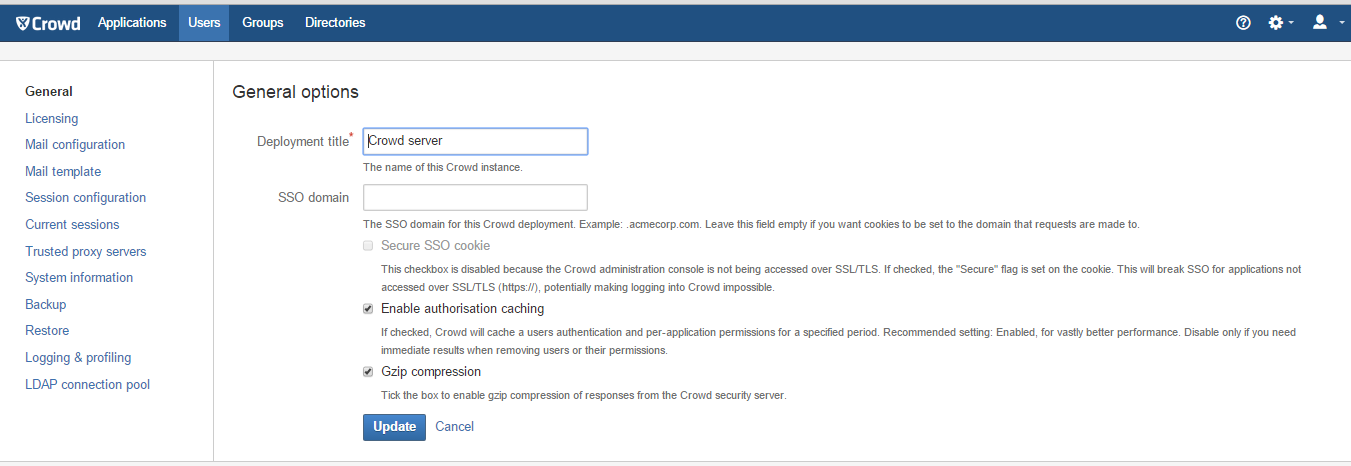

Check the domain name from Crowd Admin > General > General Options
SSO Domain should not be left empty
SSO Domain should comply with the guide stated in the following documentation:
Scenario 2:
After applying SSO, users are not able to log in to a configured Atlassian application.
Possible cause and Diagnosis steps:
The fact that users are not able to log in to an application is an evident that seraph-config.xml and the crowd.properties configuration may not be correct.
Configuration needed to be checked:
Ensure that each Atlassian application's
WEB-INF/classes/seraph-config.xmlfile is using the Crowd's com.atlassian.crowd authenticator class.See step 2 of the following guide: 2.2 Enable SSO integration with Crowd (Optional)

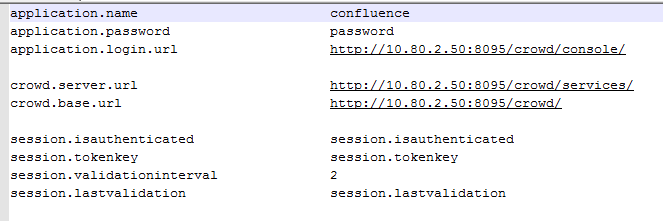

In the crowd.properties file, make sure that the application URL from each application (such as Confluence/JIRA) is set to Crowd's IP address instead of Crowd's base URL
See step 4 of the following documentation 2.2 Enable SSO integration with Crowd (Optional)
Related documentation:
