Getting AuthenticationServiceException when logging in to Crowd
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Symptoms

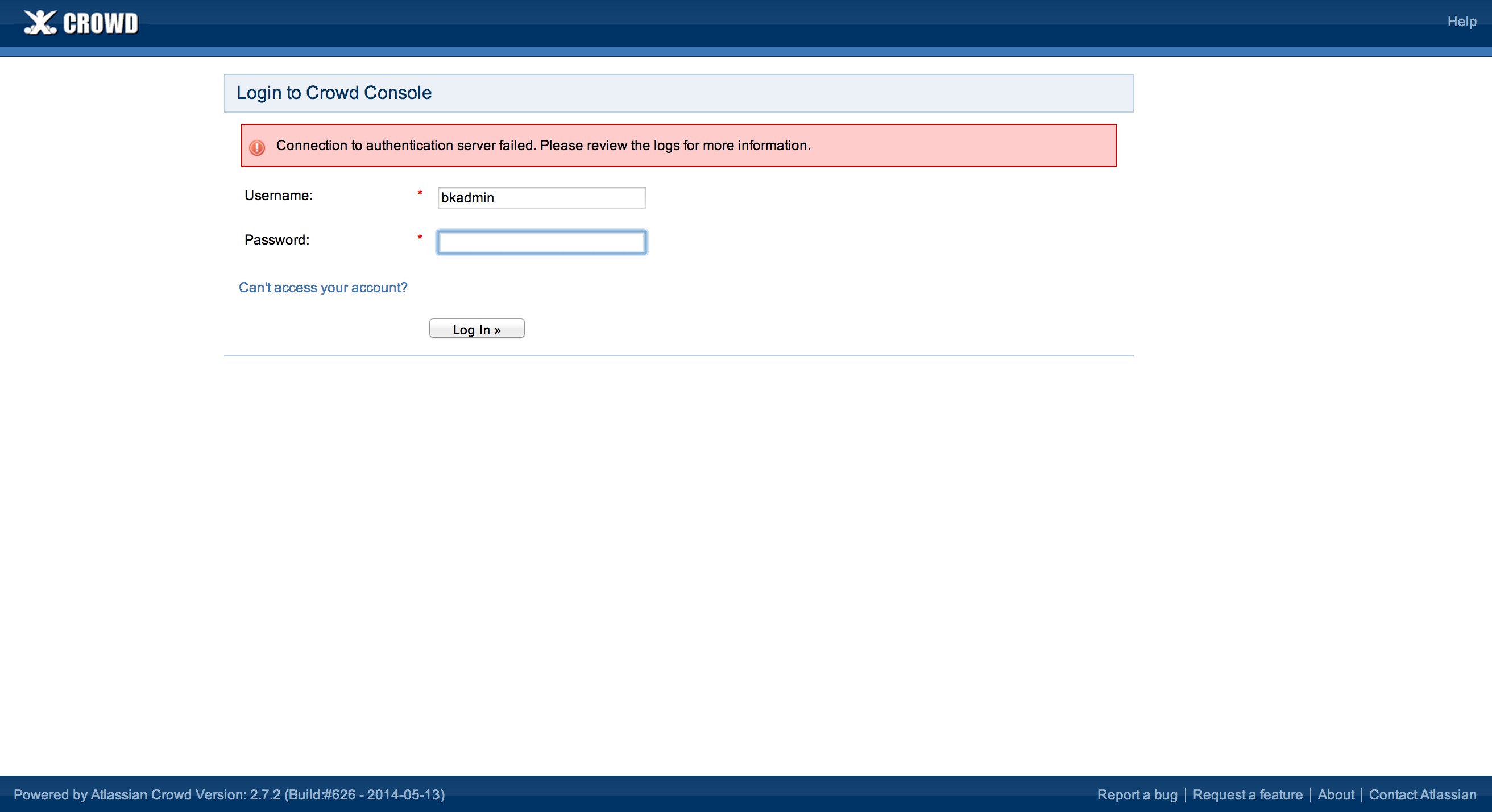

The authentication process into Crowd hangs and then fails with the message: Connection to authentication server failed. Please review the logs for more information.
Subsequent log in attempts with the same credentials are successful without the same hang. However, logging out, waiting at least 10 minutes, and then logging in again produces the same behavior with an initial hang, then subsequent success.
The following appears in the atlassian-crowd.log:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
2014-08-08 12:13:18,068 http-bio-8095-exec-10 ERROR [xfire.transport.http.HttpChannel] java.net.SocketTimeoutException: Read timed out
2014-08-08 12:13:18,069 http-bio-8095-exec-10 INFO [service.soap.client.SecurityServerClientImpl] Existing application token is null, authenticating ...
2014-08-08 12:13:19,305 http-bio-8095-exec-10 INFO [service.soap.client.SecurityServerClientImpl] Created new application token: X7tupe00MAGxJ0Hahq4euA00
2014-08-08 12:13:19,339 http-bio-8095-exec-16 ERROR [crowd.console.action.Login] Failed to connect to the authentication server, please check your crowd.properties
org.springframework.security.authentication.AuthenticationServiceException: Could not invoke service.. Nested exception is org.codehaus.xfire.fault.XFireFault: Couldn't send message.
at com.atlassian.crowd.integration.springsecurity.CrowdAuthenticationProvider.translateException(CrowdAuthenticationProvider.java:301)
at com.atlassian.crowd.integration.springsecurity.CrowdAuthenticationProvider.authenticateUsernamePassword(CrowdAuthenticationProvider.java:164)
at com.atlassian.crowd.integration.springsecurity.CrowdAuthenticationProvider.authenticate(CrowdAuthenticationProvider.java:102)
at org.springframework.security.authentication.ProviderManager.authenticate(ProviderManager.java:156)
at com.atlassian.crowd.integration.springsecurity.DynamicProviderManagerImpl.authenticate(DynamicProviderManagerImpl.java:40)
at org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter.attemptAuthentication(UsernamePasswordAuthenticationFilter.java:94)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:195)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:342)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:105)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:342)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:87)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:342)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:192)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:160)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:343)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:260)
at com.atlassian.crowd.console.filter.CrowdDelegatingFilterProxy.doFilter(CrowdDelegatingFilterProxy.java:38)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.crowd.console.filter.LoginCsrfFilter.doFilterInternal(LoginCsrfFilter.java:47)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:343)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:260)
at com.atlassian.crowd.console.filter.CrowdDelegatingFilterProxy.doFilter(CrowdDelegatingFilterProxy.java:38)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.plugin.servlet.filter.IteratingFilterChain.doFilter(IteratingFilterChain.java:46)
at com.atlassian.plugin.servlet.filter.DelegatingPluginFilter$1.doFilter(DelegatingPluginFilter.java:66)
at com.atlassian.security.auth.trustedapps.filter.TrustedApplicationsFilter.doFilter(TrustedApplicationsFilter.java:98)
at com.atlassian.plugin.servlet.filter.DelegatingPluginFilter.doFilter(DelegatingPluginFilter.java:74)
at com.atlassian.plugin.servlet.filter.IteratingFilterChain.doFilter(IteratingFilterChain.java:42)
at com.atlassian.plugin.servlet.filter.DelegatingPluginFilter$1.doFilter(DelegatingPluginFilter.java:66)
at com.atlassian.oauth.serviceprovider.internal.servlet.OAuthFilter.doFilter(OAuthFilter.java:55)
at com.atlassian.plugin.servlet.filter.DelegatingPluginFilter.doFilter(DelegatingPluginFilter.java:74)
at com.atlassian.plugin.servlet.filter.IteratingFilterChain.doFilter(IteratingFilterChain.java:42)
at com.atlassian.plugin.servlet.filter.ServletFilterModuleContainerFilter.doFilter(ServletFilterModuleContainerFilter.java:77)
at com.atlassian.plugin.servlet.filter.ServletFilterModuleContainerFilter.doFilter(ServletFilterModuleContainerFilter.java:63)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.crowd.console.filter.LicenceFilter.doFilterInternal(LicenceFilter.java:56)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:343)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:260)
at com.atlassian.crowd.console.filter.CrowdDelegatingFilterProxy.doFilter(CrowdDelegatingFilterProxy.java:38)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.johnson.filters.AbstractJohnsonFilter.doFilter(AbstractJohnsonFilter.java:67)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at org.springframework.orm.hibernate4.support.OpenSessionInViewFilter.doFilterInternal(OpenSessionInViewFilter.java:152)
at com.atlassian.crowd.console.filter.CrowdOpenSessionInViewFilter.doFilterInternal(CrowdOpenSessionInViewFilter.java:26)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.crowd.plugin.web.filter.RequestCacheThreadLocalFilter.doFilter(RequestCacheThreadLocalFilter.java:31)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.gzipfilter.GzipFilter.doFilterInternal(GzipFilter.java:74)
at com.atlassian.gzipfilter.GzipFilter.doFilter(GzipFilter.java:51)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:343)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:260)
at com.atlassian.crowd.console.filter.CrowdDelegatingFilterProxy.doFilter(CrowdDelegatingFilterProxy.java:38)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.plugin.servlet.filter.IteratingFilterChain.doFilter(IteratingFilterChain.java:46)
at com.atlassian.plugin.servlet.filter.ServletFilterModuleContainerFilter.doFilter(ServletFilterModuleContainerFilter.java:77)
at com.atlassian.plugin.servlet.filter.ServletFilterModuleContainerFilter.doFilter(ServletFilterModuleContainerFilter.java:63)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:88)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at com.atlassian.crowd.plugin.web.filter.HttpContextFilter.doFilter(HttpContextFilter.java:34)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:243)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:210)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:222)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:123)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:502)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:171)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:99)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:118)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:408)
at org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1023)
at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:589)
at org.apache.tomcat.util.net.JIoEndpoint$SocketProcessor.run(JIoEndpoint.java:312)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
at java.lang.Thread.run(Thread.java:744)
Caused by: org.codehaus.xfire.XFireRuntimeException: Could not invoke service.. Nested exception is org.codehaus.xfire.fault.XFireFault: Couldn't send message.
at org.codehaus.xfire.client.XFireProxy.handleRequest(XFireProxy.java:92)
at org.codehaus.xfire.client.XFireProxy.invoke(XFireProxy.java:57)
at com.sun.proxy.$Proxy318.authenticateApplication(Unknown Source)
at com.atlassian.crowd.service.soap.client.SecurityServerClientImpl.authenticate(SecurityServerClientImpl.java:235)
at com.atlassian.crowd.service.soap.client.SecurityServerClientImpl.getSoapApplicationToken(SecurityServerClientImpl.java:215)
at com.atlassian.crowd.service.soap.client.SecurityServerClientImpl.authenticatePrincipal(SecurityServerClientImpl.java:255)
at com.atlassian.crowd.service.cache.CacheAwareAuthenticationManager.authenticate(CacheAwareAuthenticationManager.java:48)
at com.atlassian.crowd.integration.http.HttpAuthenticatorImpl.verifyAuthentication(HttpAuthenticatorImpl.java:247)
at com.atlassian.crowd.integration.springsecurity.RemoteCrowdAuthenticationProvider.authenticate(RemoteCrowdAuthenticationProvider.java:50)
at com.atlassian.crowd.integration.springsecurity.CrowdAuthenticationProvider.authenticateUsernamePassword(CrowdAuthenticationProvider.java:150)
... 87 more
Caused by: org.codehaus.xfire.fault.XFireFault: Couldn't send message.
at org.codehaus.xfire.fault.XFireFault.createFault(XFireFault.java:89)
at org.codehaus.xfire.handler.OutMessageSender.invoke(OutMessageSender.java:30)
at org.codehaus.xfire.handler.HandlerPipeline.invoke(HandlerPipeline.java:131)
at org.codehaus.xfire.client.Invocation.invoke(Invocation.java:79)
at org.codehaus.xfire.client.Invocation.invoke(Invocation.java:114)
at org.codehaus.xfire.client.Client.invoke(Client.java:336)
at org.codehaus.xfire.client.XFireProxy.handleRequest(XFireProxy.java:77)
... 96 more
Caused by: org.codehaus.xfire.XFireException: Couldn't send message.
at org.codehaus.xfire.transport.http.HttpChannel.sendViaClient(HttpChannel.java:145)
at org.codehaus.xfire.transport.http.HttpChannel.send(HttpChannel.java:48)
at org.codehaus.xfire.handler.OutMessageSender.invoke(OutMessageSender.java:26)
... 101 more
Caused by: java.net.SocketTimeoutException: Read timed out
at java.net.SocketInputStream.socketRead0(Native Method)
at java.net.SocketInputStream.read(SocketInputStream.java:152)
at java.net.SocketInputStream.read(SocketInputStream.java:122)
at java.io.BufferedInputStream.fill(BufferedInputStream.java:235)
at java.io.BufferedInputStream.read(BufferedInputStream.java:254)
at org.apache.commons.httpclient.HttpParser.readRawLine(HttpParser.java:78)
at org.apache.commons.httpclient.HttpParser.readLine(HttpParser.java:106)
at org.apache.commons.httpclient.HttpConnection.readLine(HttpConnection.java:1116)
at org.apache.commons.httpclient.MultiThreadedHttpConnectionManager$HttpConnectionAdapter.readLine(MultiThreadedHttpConnectionManager.java:1413)
at org.apache.commons.httpclient.HttpMethodBase.readStatusLine(HttpMethodBase.java:1973)
at org.apache.commons.httpclient.HttpMethodBase.readResponse(HttpMethodBase.java:1735)
at org.apache.commons.httpclient.HttpMethodBase.execute(HttpMethodBase.java:1098)
at org.apache.commons.httpclient.HttpMethodDirector.executeWithRetry(HttpMethodDirector.java:398)
at org.apache.commons.httpclient.HttpMethodDirector.executeMethod(HttpMethodDirector.java:171)
at org.apache.commons.httpclient.HttpClient.executeMethod(HttpClient.java:397)
at org.codehaus.xfire.transport.http.CommonsHttpMessageSender.send(CommonsHttpMessageSender.java:369)
at org.codehaus.xfire.transport.http.HttpChannel.sendViaClient(HttpChannel.java:123)
... 103 moreCause
The Crowd application, as defined inside Crowd, is configured with a remote address (entered as a host name) that cannot be resolved. This causes a socket timeout exception, which causes authentication to fail.
Resolution
In Crowd, navigate to the Crowd application, click the Remote Addresses tab, and remove the offending entry.
Updated on April 8, 2025
