Upload attachment function does not work in editing mode

Summary

Unable to upload attachments from the Editor via either:

• Edit page > Insert > Attachment

• Edit page > Insert > Image

• Edit page > Insert files and images > click on Upload files

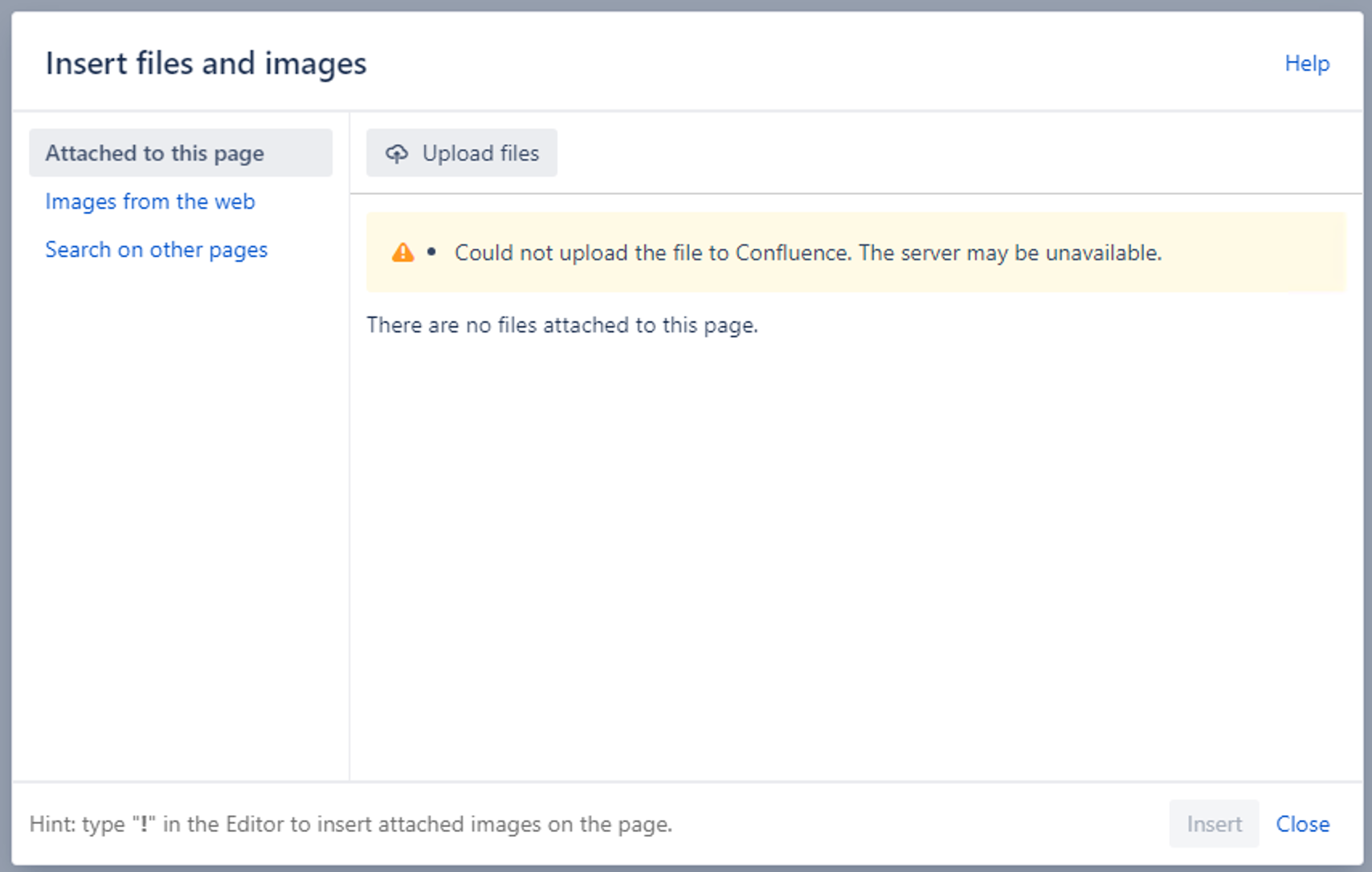

You get the error message: "Could not upload the file to Confluence. The server may be unavailable."

Note: sometimes the attachment will upload despite the warning.

You can successfully upload attachments from Tools > Attachments > Attach File.

Diagnosis

The following appears in the atlassian-confluence.log:

Additional diagnosis:

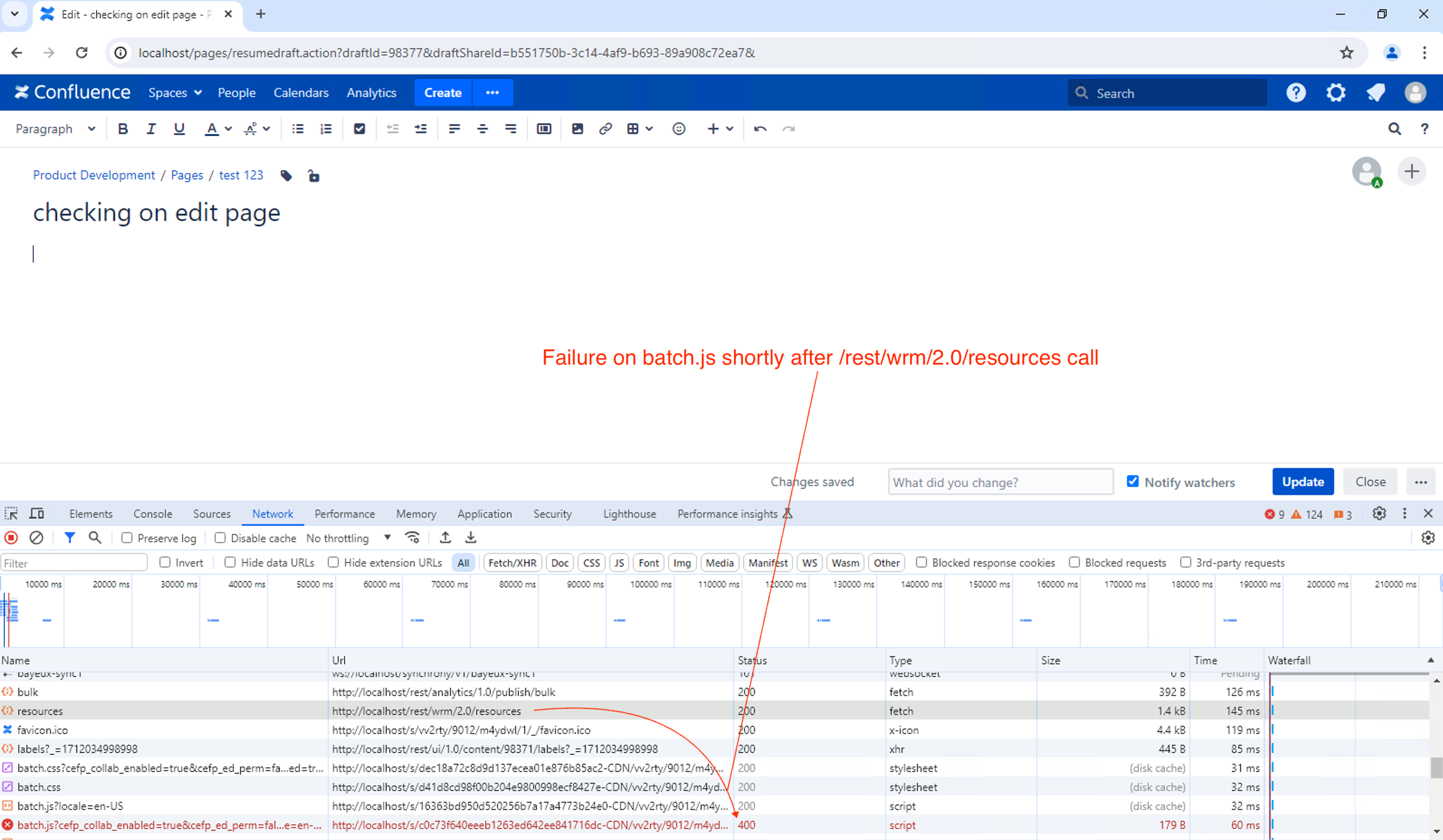

1. Open the Browser Developer tools to the Network tab

2. On the Edit screen load, check if there are any HTTP failures on any batch.js calls after the resources call:



   Look for any errors such as HTTP 400, HTTP 0 on the batch.js calls

Cause

• The configured base URL does not match the URL you use to access Confluence via the browser. For example, you access Confluence via

• http://atlassian.net:8090 while the configured base URL from Confluence Admin > General Configuration is http://atlassian.net/confluence

• There is also a known bug. Follow its progress here: CONFSERVER-28564 - Uploading attachments through the "insert link" macro fails if it uploads too slowly.

• This has also been reported in legacy versions of Confluence (e.g. Confluence 5.6.X) caused by the Brikit Theme Press.

• IIS has a maximum URL length restriction causing long URLs to fail with a HTTP 400.

• Antivirus scanners such as Symantec endpoint and/or Trend Micro are running on the Confluence Server.

Solution

Solution 1

Ensure that the configured base URL must match the URL you use to access Confluence via the browser. Update the Base URL from Confluence Admin > General Configuration.

Also check that the <confluence-install-dir>/conf/server.xml has the relevant proxyName, proxyPort and scheme tags. Refer to the relevant Proxy and HTTPS setup for Confluence guides.

Solution 2 - IIS

2.1. IIS not using AJP worker

1. Open up IIS Manager

2. Navigate to the Confluence "site"

   • Right click and clickExplore

   • Edit the web.config file in a text editor

     • Make sure in the <system.web> block, there is a value for maxUrlLength="4096", e.g.

       <?xml version="1.0" encoding="UTF-8"?> <configuration> <system.webServer> <rewrite> ... </rewrite> <security> ... </security> </system.webServer> <system.web> <!-- This keeps IIS from complaining about special characters in the url. Also has some controls for max upload size. Set to the equivalent of the above, but in kilobytes instead of bytes. (ex. 61440 = 60MB) --> <httpRuntime executionTimeout="20" maxUrlLength="4096" maxRequestLength="100000" requestPathInvalidCharacters="" requestValidationMode="2.0" /> <pages validateRequest="false" /> </system.web> </configuration>

3. Once the above is done, restart the "IIS service" for the change to take effect

2.2. IIS is using AJP worker

1. Open up regedit.exe from Start Menu on the Windows IIS Server

2. Navigate to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\HTTP\Parameters

3. Create a new DWORD (32-bit) value

   1. Name: UrlSegmentMaxLength

   2. Value: 1000 (hex) or 4096 (decimal)

4. Reboot the entire Windows machine for the registry change to take effect

Solution 3

As per Using Antivirus software with Confluence:

• Disable/Uninstall Symantec Endpoint and/or Trend Micro antivirus scanner from the Confluence Server; or

• Exclude The Tomcat listening port from being scanned; or

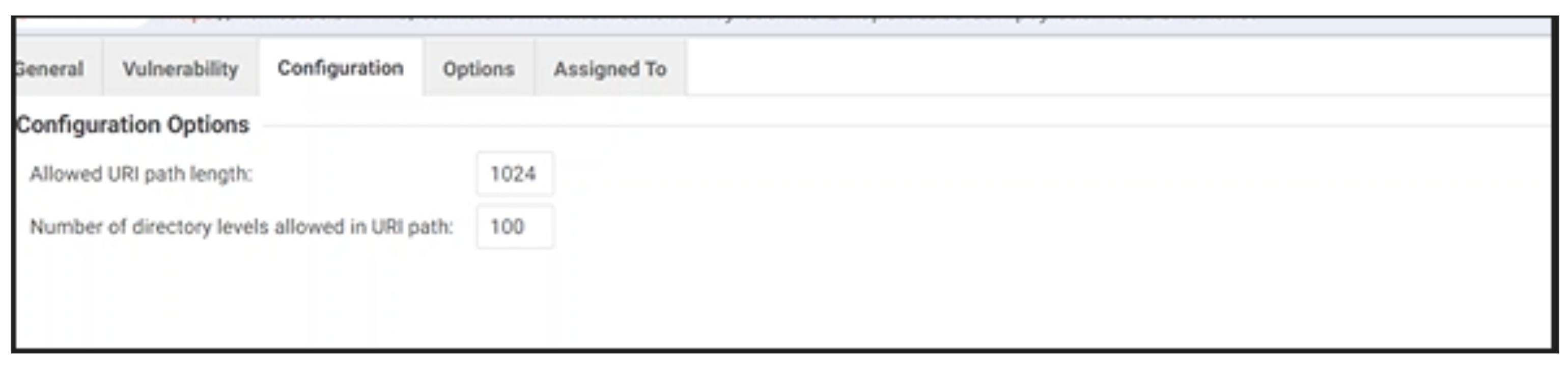

• Edit the Trend Micro AV / URI Length and Depth restriction rule to allow long URI length (e.g. set to 1024):




Workaround

Enable Safe-Mode and see if the upload functionality works after disabling third party add-ons.
