Confluence Datacenter Clustering page stuck with configure your cluster message
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary

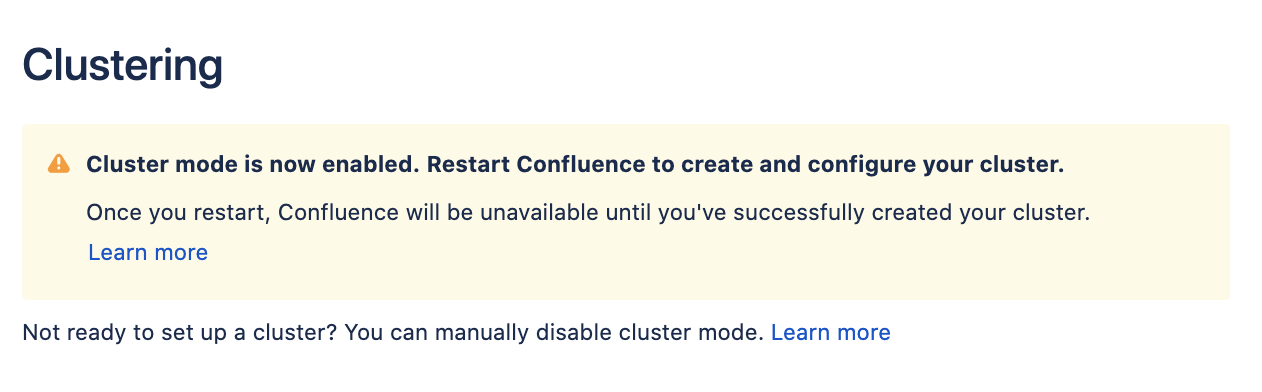

The Clustering page is stuck with the following message:
Environment
Confluence Datacenter
Diagnosis
Confluence Datacenter offers the clustering option for your installation. After installing Confluence and configuring the cluster, you may navigate to the Clustering page as a Confluence administrator to check the configuration after the installation. However, the clustering page is stuck with the message – Cluster mode is now enabled. Restart Confluence to create and configure your cluster.

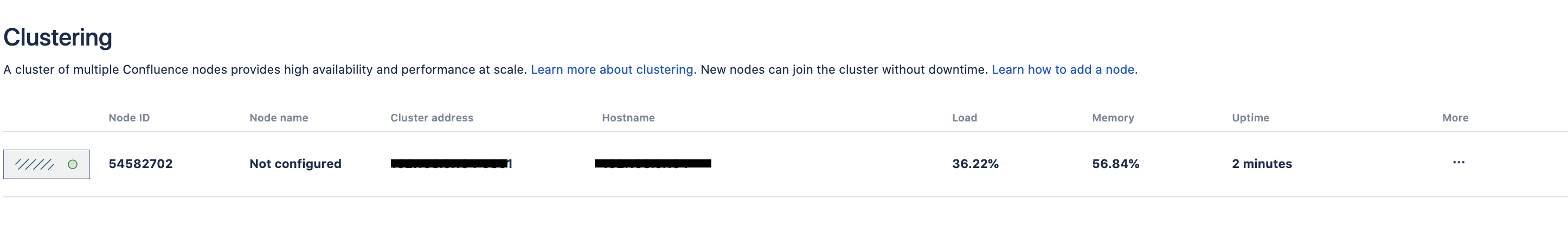

Following the message guidance, restarting Confluence should allow you to complete the cluster configuration but the same message is presented. The Clustering page should present the following when configured:
Cause
The root cause is unknown but the Clustering option is set in the confluence.cfg.xml file and if the values of the properties are wrong, this problem will appear. In this case, the problem is with two parameters:
1
2
<property name="cluster.setup.ready">true</property>
<property name="confluence.cluster">false</property>After completing the cluster configuration, the property – cluster.setup.ready – shouldn't exist. Also, the property – confluence.cluster – should be set to true.
Solution
The solution is only available to an installation that already completed the clustering configuration during the setup process.
Shutdown Confluence
Navigate to <confluence-home-folder>
Find and edit the confluence.cfg.xml file
Not to be confused with the confluence.cfg.xml file that exists in the shared-home. The file we're going to edit is from the home folder of a node, each node has its own home folder and a unique shared-home folder exists for the cluster.
Delete the following property:
1<property name="cluster.setup.ready">true</property>Change the following property value from false to true:
1<property name="confluence.cluster">true</property>Save the change
Restart Confluence
