Getting "Invalid OAuth credentials" when registering a Jira Software Cloud site in Bitbucket Data Center
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
The customer is unable to use the OAuth credentials to connect Bitbucket to Jira Cloud because they are getting Invalid OAuth Credentials.
Environment
Bitbucket Data Center 7.14 to 8.0
Diagnosis
The problem is reproduced by doing the following steps:
Generate OAuth Credentials from Jira Cloud
Add one or more permissions except for Development information
Go to Bitbucket Data Center's Jira Cloud Integration page (Administration > System > Jira Cloud Integration)
Click on Register site

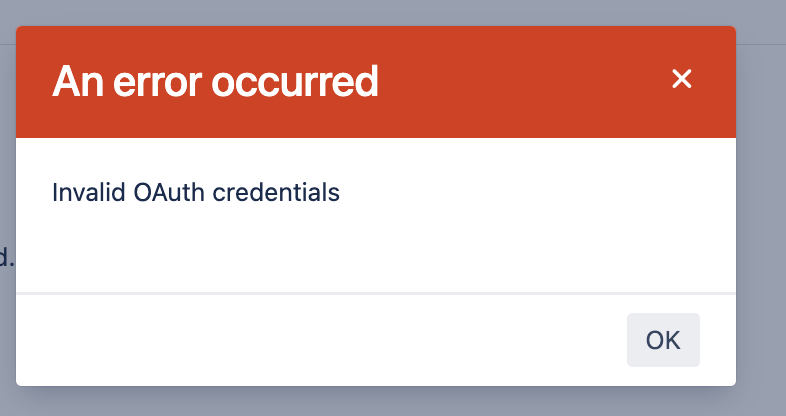

Add the credentials generated from step 1 and save. An error is displayed.
The debug logs show the following:
1
2
3
4
5
6
7
8
9
10
11
12
13
DEBUG [http-nio-22110-exec-6] bitbucket @19X73F5x939x153x0 e615o1 0:0:0:0:0:0:0:1 "POST /rest/jira-dev/latest/jira-site-config HTTP/1.1" c.a.s.i.r.e.ServiceExceptionMapper Mapping ServiceException to REST response 400
com.atlassian.stash.internal.jira.cloud.config.exception.InvalidOauthCredentialException: Invalid OAuth credentials
at com.atlassian.stash.internal.jira.cloud.config.service.DefaultJiraSiteConfigService.validateOauthCredentials(DefaultJiraSiteConfigService.java:232)
at com.atlassian.stash.internal.jira.cloud.config.service.DefaultJiraSiteConfigService.create(DefaultJiraSiteConfigService.java:85)
at com.atlassian.stash.internal.jira.rest.JiraSiteConfigurationResource.create(JiraSiteConfigurationResource.java:46)
..
..
Caused by: com.atlassian.stash.internal.jira.http.client.exception.HttpClientException: Forbidden
at com.atlassian.stash.internal.jira.http.json.DefaultHttpRequestExecutor.lambda$null$3(DefaultHttpRequestExecutor.java:74)
at com.atlassian.httpclient.api.ResponsePromiseMapFunction.apply(ResponsePromiseMapFunction.java:49)
at com.atlassian.httpclient.api.ResponsePromiseMapFunction.apply(ResponsePromiseMapFunction.java:10)
at io.atlassian.util.concurrent.Promises$OfStage.lambda$fold$4(Promises.java:332)
at io.atlassian.util.concurrent.Promises.lambda$biFunction$7(Promises.java:422)Cause
The OAuth Credentials were created without the Development information permission set.
Solution
In Jira Cloud, locate the OAuth Credential and edit it
Add the Development information permission
Save the credential
Register the Jira Cloud site in Bitbucket again
Alternatively, upgrading to 8.1.0 or higher addresses this issue without having to add the Development information permission.
