Bitbucket Data Center Base URL points to Ingress controller instead of the External Load Balancer in Kubernetes Cluster

Summary

In the Bitbucket Data Center hosted on Kubernetes cluster setup, including the External load balancer, the Bitbucket Base URL points to the Ingress controller instead of the External Load Balancer.

Environment

• Tested on Bitbucket Data Center 8.9.9

• Applies to Bitbucket Data Center 8.x

• Kubernetes Cluster

Diagnosis

• Check the host parameter defined in values.yamlfile under the "Ingress" section if it belongs to the Ingress Controller hostname or External Load Balancer Hostname.

• Check External Load Balancer configuration file parameters whether they are defined correctly.

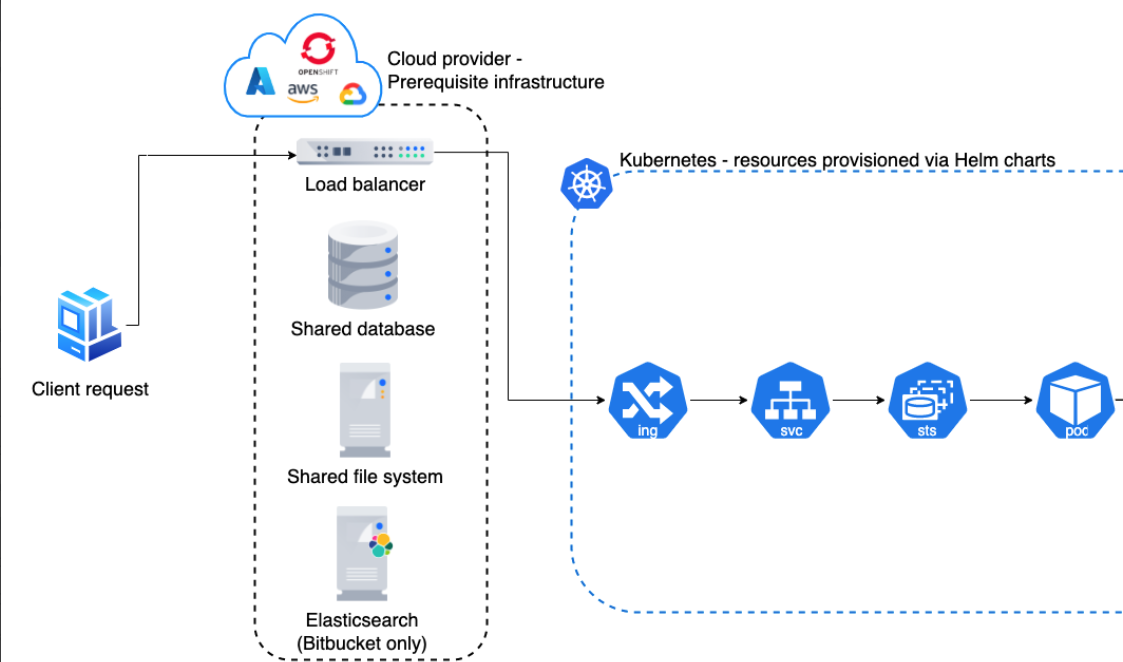

Here's a flow diagram of the user request from an External Load Balancer up until the Kubernetes pod:

In the above diagram, we can see that Client is sending a request to External Load Balancer and External Load Balancer further sending a request to Ingress Controller. Ingress controller internally communicates with Kubernetes service and Kubernetes pod.

Cause

This issue generally occurs when the following parameters are not defined or they are defined but not correctly while following the Data Center on K8s Installation Article:

• host parameter under the Ingress category in values.yaml file. This parameter needs to be set to External Load Balancer hostname:

  1 2 3 4 5 6 7 8 9 ingress: create: true #1. Setting true here will create an Ingress resource nginx: true #2. If using the ingress-nginx controller set this property to true maxBodySize: 250m host: <dns_host_name> #2. Hosts can be precise matches (for example “foo.bar.com”) or a wildcard (for example “*.foo.com”). path: "/" annotations:     cert-manager.io/issuer: <certificate_issuer> https: true tlsSecretName: <tls_certificate_name>

• External load balancer configuration file should have the "proxy_set_header Host $host;" parameter set:

  1 2 3 4 5 6 7 8 9 10 11 12 ## Example of Nginx Load Balancer: location / {     allow all;     proxy_pass https://<target_host_name>; proxy_set_header Host $host; proxy_set_header x-forwarded-host $host;     proxy_set_header x-forwarded-server $host;     proxy_set_header x-forwarded-for  $proxy_add_x_forwarded_for;     client_max_body_size 10M; }

Solution

By setting the host parameter under values.yaml to External Load Balancer hostname and defining the "proxy_set_header Host $host;" parameter in the External Load Balancer configuration file should resolve this issue.
