Git Repository - Remote trigger
Platform Notice: Data Center Only - This article only applies to Atlassian products on the Data Center platform.
Note that this KB was created for the Data Center version of the product. Data Center KBs for non-Data-Center-specific features may also work for Server versions of the product, however they have not been tested. Support for Server* products ended on February 15th 2024. If you are running a Server product, you can visit the Atlassian Server end of support announcement to review your migration options.
*Except Fisheye and Crucible
Summary
The following will provide you with a better understanding on setting up Remote repository triggering in Bamboo when using Git repositories.
Please, refer to the following documentation for further information:
As per links above, you are able to delegate your Git repository the task to inform Bamboo when a build should run:
Solution
Requirements
add Git repository to a Project / Plan in Bamboo
add post-receive to your Git repository
add a Remote trigger (Repository triggers the build when changes are committed)
add Trigger IP Addresses (IP address from where the request will originate)
check Plan configuration >> Permissions tab

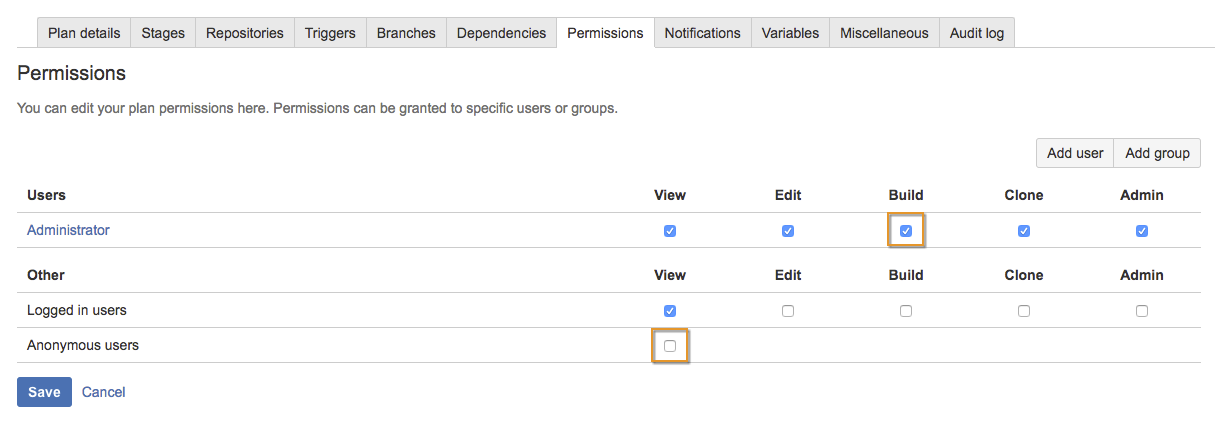

Plan configuration > Permissions
1. When Anonymous users is enabled
When running 'post-receive', Bamboo will run builds.
2. When Anonymous users is disabled
When running 'post-receive', Bamboo will not run builds and the following will be thrown in <bamboo-home>/logs/atlassian-bamboo.log
<bamboo-home>/logs/atlassian-bamboo.log
2016-11-17 17:19:21,753 INFO [http-bio-8085-exec-2] [AccessLogFilter] 127.0.0.1 GET http://localhost:8085/api/rest/updateAndBuild.action?buildKey=PROJ-PLAN 56080kb
2016-11-17 17:19:21,779 WARN [http-bio-8085-exec-2] [AuthorizationLoggerListener] Authorization failed: org.acegisecurity.AccessDeniedException: Access is denied; authenticated principal: org.acegisecurity.providers.anonymous.AnonymousAuthenticationToken@9055e4a6: Username: anonymousUser; Password: [PROTECTED]; Authenticated: true; Details: org.acegisecurity.ui.WebAuthenticationDetails@957e: RemoteIpAddress: 127.0.0.1; SessionId: null; Granted Authorities: ROLE_ANONYMOUS; secure object: ReflectiveMethodInvocation: public abstract java.util.List com.atlassian.bamboo.plan.cache.CachedPlanManager.getBranchesForChain(com.atlassian.bamboo.plan.PlanIdentifier); target is of class [com.atlassian.bamboo.plan.cache.CachedPlanManagerImpl]; configuration attributes: [ACL_BUILD_READ]
3. When Anonymous users is disabled but providing user's authentication
As mentioned previously, removing Anonymous users permission will prevent builds from running, unless you edit the 'post-receive' and run the GET method authenticating against Bamboo.
Please, find below examples on how to accomplish that:
post-receive, check changes against all branches
#!/usr/bin/python
#
# ./post-receive http://localhost:8085 PROJ-PLAN
import sys
import urllib2
import base64
baseUrl = sys.argv[1]
buildKey = sys.argv[2]
# the user provided MUST have access on 'Plan configuration >> Permissions' tab
username = 'admin'
password = 'admin'
remoteCall = baseUrl + "/api/rest/updateAndBuild.action?buildKey=" + buildKey
request = urllib2.Request(remoteCall)
base64string = base64.encodestring('%s:%s' % (username, password)).replace('\n', '')
request.add_header("Authorization", "Basic %s" % base64string)
result = urllib2.urlopen(request)
result.close()
post-receive, specific branch
#!/usr/bin/python
### ========== REQUIREMENTS
# install 'requests' as per http://docs.python-requests.org/en/master/user/install/
### ========== REQUIREMENTS : end
import requests
import json
import sys
import re
def post_receive(from_commit, to_commit, branch_name):
# the user provided MUST have access on 'Plan configuration >> Permissions' tab
username = 'admin'
password = 'admin'
planKey = 'PROJ-PLAN'
url = 'http://localhost:8085/rest/api/latest'
headers = {'Content-Type': 'application/json', 'Accept': 'application/json'}
r = requests.get(url + '/plan/' + planKey + '/branch', auth=(username, password), headers=headers)
if (r.status_code == 200):
branches = json.loads(r.text)
for branch in branches["branches"]["branch"]:
if (branch["enabled"] == True):
if (re.sub("[^0-9a-zA-Z]+","-",branch_name).lower() == branch["shortName"].lower()):
planKey = branch["key"]
elif (r.status_code == 400):
print(r.text)
url = 'http://localhost:8085/rest/api'
headers = {'Content-Type': 'application/json'}
r = requests.post(url + '/latest/queue/' + planKey, auth=(username, password), headers=headers)
if (r.status_code == 200):
print "Success"
elif (r.status_code == 400):
print(r.text)
if __name__ == '__main__':
# get values from STDIN
fc,tc,bn = sys.stdin.read().split()
post_receive(fc, tc, bn)ℹ️ Please, remember the 'post-receive' above is a Python script, so you can edit as you were writing a Python script, extending its functionality based on your use case:
evaluate the committer so only a particular user and/or set of users can trigger builds in Bamboo
only send event after X new commits
allow triggering after 5PM
allow triggering on Thursdays
4. Notes
It is important to notice the action call (/api/rest/updateAndBuild.action?buildKey=) from 'post-receive' above will check whether there are changes in the repository associated with the planKey provided as parameter. If so, Bamboo will:
trigger a build against the buildKey provided
will check if there are any other changes in the repository, including branches. If so, will trigger a build against branches.
In other words, when you have the following scenario and commit something against branch feature/bar (buildKey=PROJ-PLAN1), Bamboo will attempt on running a build against all branches (PROJ-PLAN, PROJ-PLAN0, PROJ-PLAN1) if repository changes were found.
Repository | Branch | PlanKey |
|---|---|---|
| master | PROJ-PLAN |
| feature/foo | PROJ-PLAN0 |
| feature/bar | PROJ-PLAN1 |
And you should find something similar to the following in <bamboo-home>/logs/atlassian-bamboo.log
<bamboo-home>/logs/atlassian-bamboo.log
2016-11-17 18:09:15,732 INFO [9-BAM::PlanExec:pool-16-thread-3] [ChangeDetectionListenerAction] No changes found for 'PROJ-PLAN0'
2016-11-17 18:09:15,732 INFO [9-BAM::PlanExec:pool-16-thread-4] [ChangeDetectionListenerAction] No changes found for 'PROJ-PLAN'ℹ️ So if you intend on only trigger a particular build in Bamboo, then you should use post-receive, specific branch example instead.
