Cloning a Deployment Project in Bamboo fails with 500 Internal server exception

Summary

While cloning a Deployment Project 500 Internal server exception is thrown. The error text states > unable to find Deployment project with id 0.

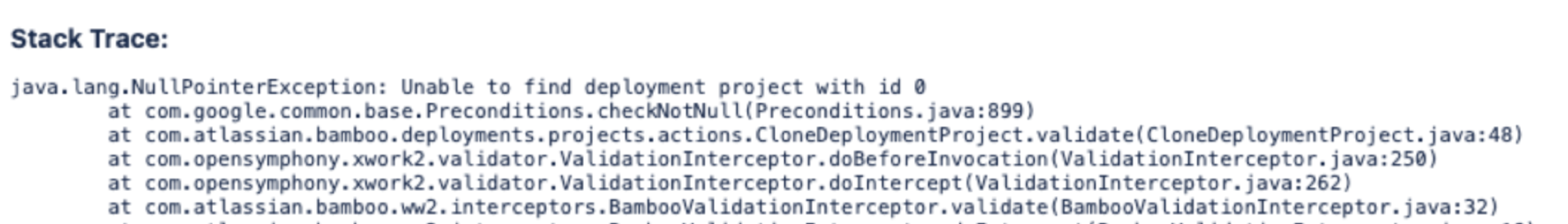

This error is seen on the Bamboo GUI when trying to clone a deployment Project, see below

Environment

Issue seen in 8.0.4.

Diagnosis

• 500 Internal server error is seen on the screen when trying to clone a Deployment project. See below error snippet from atlassian-bamboo.logfile.

  1 2 3 4 5 ERROR [http-nio-8085-exec-38] [FiveOhOh] 500 Exception was thrown. java.lang.IllegalArgumentException: Multiple entries with same key: batchs=com.atlassian.bamboo.plan.artifact.ArtifactDefinitionImpl@0 and batchs=com.atlassian.bamboo.plan.artifact.ArtifactDefinitionImpl@0. To index multiple values under a key, use Multimaps.index. at com.google.common.collect.Maps.uniqueIndex(Maps.java:1279) at com.google.common.collect.Maps.uniqueIndex(Maps.java:1234) at com.atlassian.bamboo.deployments.projects.service.DeploymentProjectServiceImpl.getArtifactDefinitionsForPlan(DeploymentProjectServiceImpl.java:1069)

Cause

The cause of the issue is duplicate artifacts definition linked to the build plan which is in-turn is linked to the Deployment project.

Investigation

Investigation of the Issue can be done in two ways ( either via Bamboo GUI or via running SQL queries in Bamboo DB )

Investigation via Bamboo GUI

• From the Bamboo home screen, click on Deploy >> All deployment projects and select the deployment project with the issue.

• The deployment project summary page will clearly show two artifacts with similar names linked to the same build plan; see one sample error below.

  1 2 3 Deployment project summary Source build plan Shanky › TestPlan Available artifacts art1, art1

 Investigation via Bamboo DB

• The scope of the DB queries is to identify the duplicate artifact definition and the job where it is defined.

• First query identifies the total duplicate artifact definitions in the DB.

  1 2 3 4 5 6 7 Select s.stage_id,a.label,a.chain_artifact FROM artifact_definition a JOIN build j ON a.producer_job_id = j.build_id JOIN chain_stage s ON j.stage_id = s.stage_id GROUP BY s.stage_id,a.label,a.chain_artifact having COUNT(*) > 1

Sample result :

• In the next step, replace the <label> and <stageid> from the previous query in the below SQL and get the job details where the artifact definitions are defined.

  1 2 3 4 5 6 7 8 9 select a.artifact_definition_id,j.build_id,j.full_key,j.build_type,s.stage_id from artifact_definition a JOIN build j ON a.producer_job_id = j.build_id JOIN chain_stage s ON j.stage_id = s.stage_id WHERE a.label = 'label' -- replace from the first query AND a.chain_artifact = true AND s.stage_id = stage_id -- replace from the first query

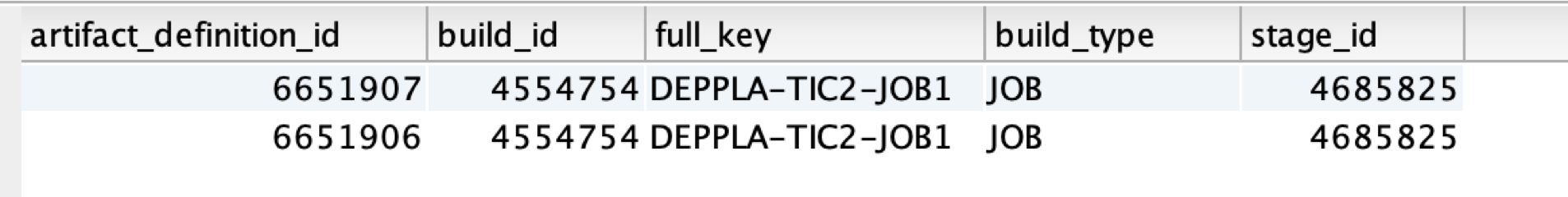

            Sample result :

Solution

• The solution to the Issue is to remove the duplicate artifacts identified from the cause above.

• From the Bamboo home screen, go to Builds >> All build plans >> Select the Build plan having an Issue.

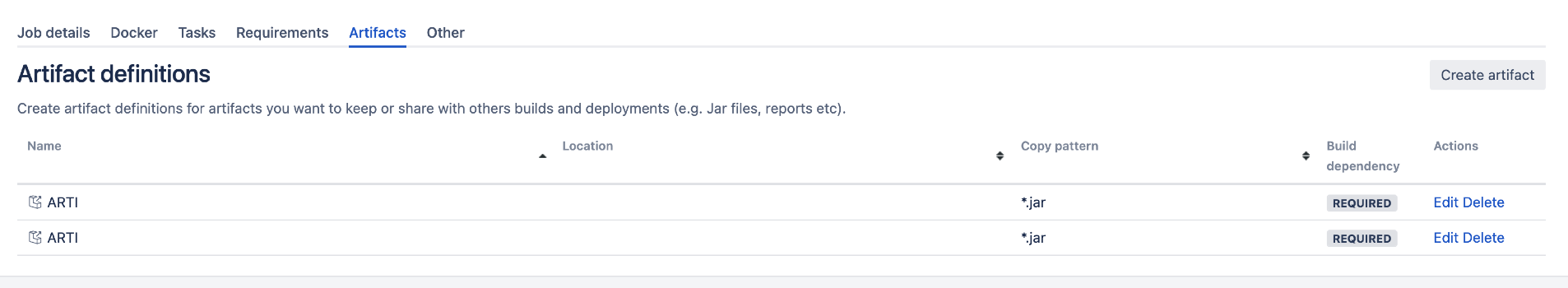

• Click on configure Plan and select the Job which has been identified from section above, the below screen would be displayed with the duplicate artifact.



• Delete or edit the duplicate artifact definition to make sure both of them don't have the same name.

• The issue with Deployment project cloning would be resolved.
